RevMax 68RFE-502 Billet OD Clutch Hub Intermediate Shaft Assembly | 2007.5-2018 Ram 6.7L Cummins

Features:

• Ability to run full thickness pressure plates while increasing clutch capacity by 28%
• Up to 50% more clutch capacity when using the industry standard .100” machined OD/Rev pressure plate.
• Longer clutch hub length allowing the installation of up to 20 single sided or 8 double sided frictions.
• One piece design that eliminates the weld from failing
• 4340M/300M billet hot forged material that is nearly 100% stronger than the OEM shaft
• Precision ground bushing surfaces
• Shot Peened lubrication holes to stop any stress cracks from forming
• Can be installed in a 100% OEM stock transmission without any modifications

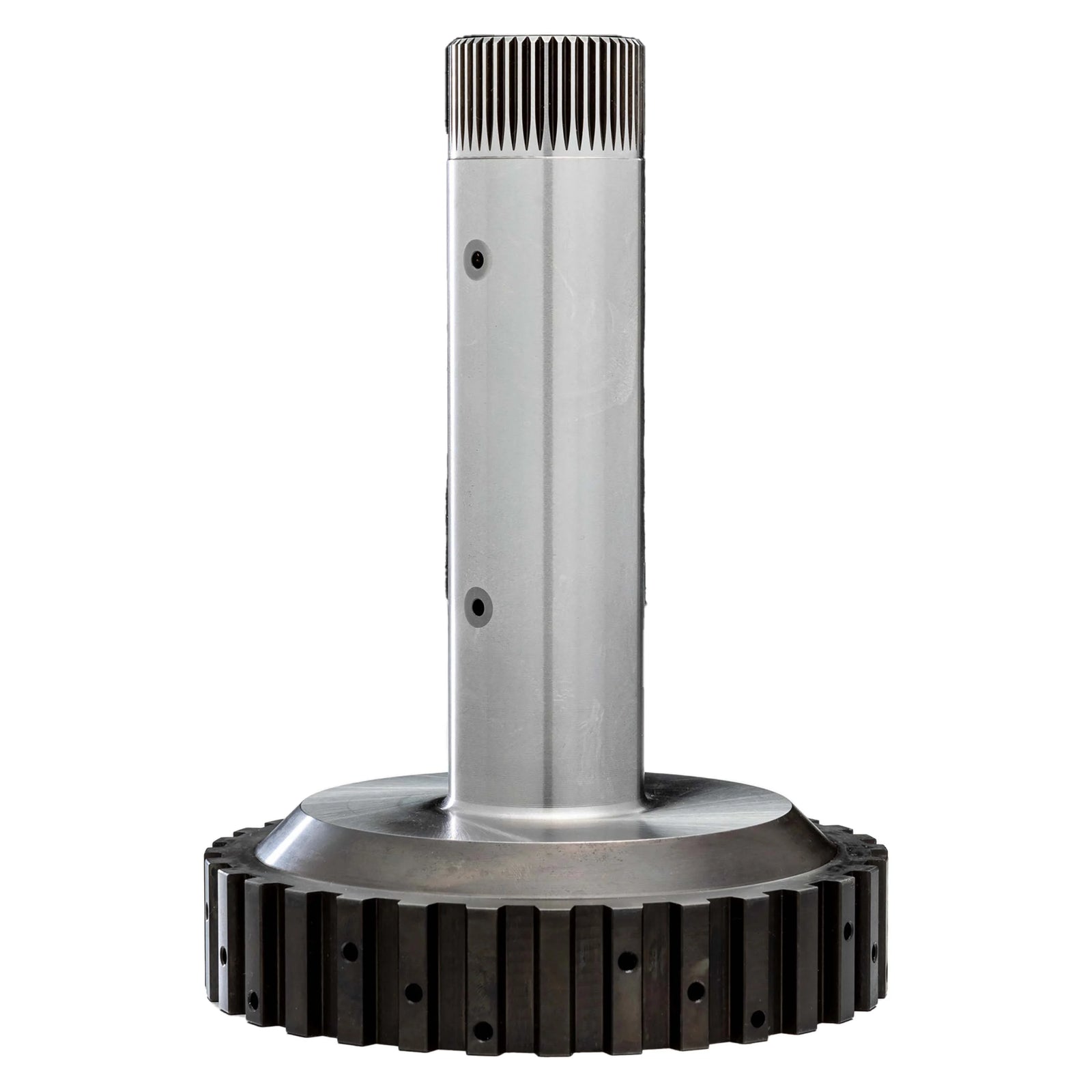

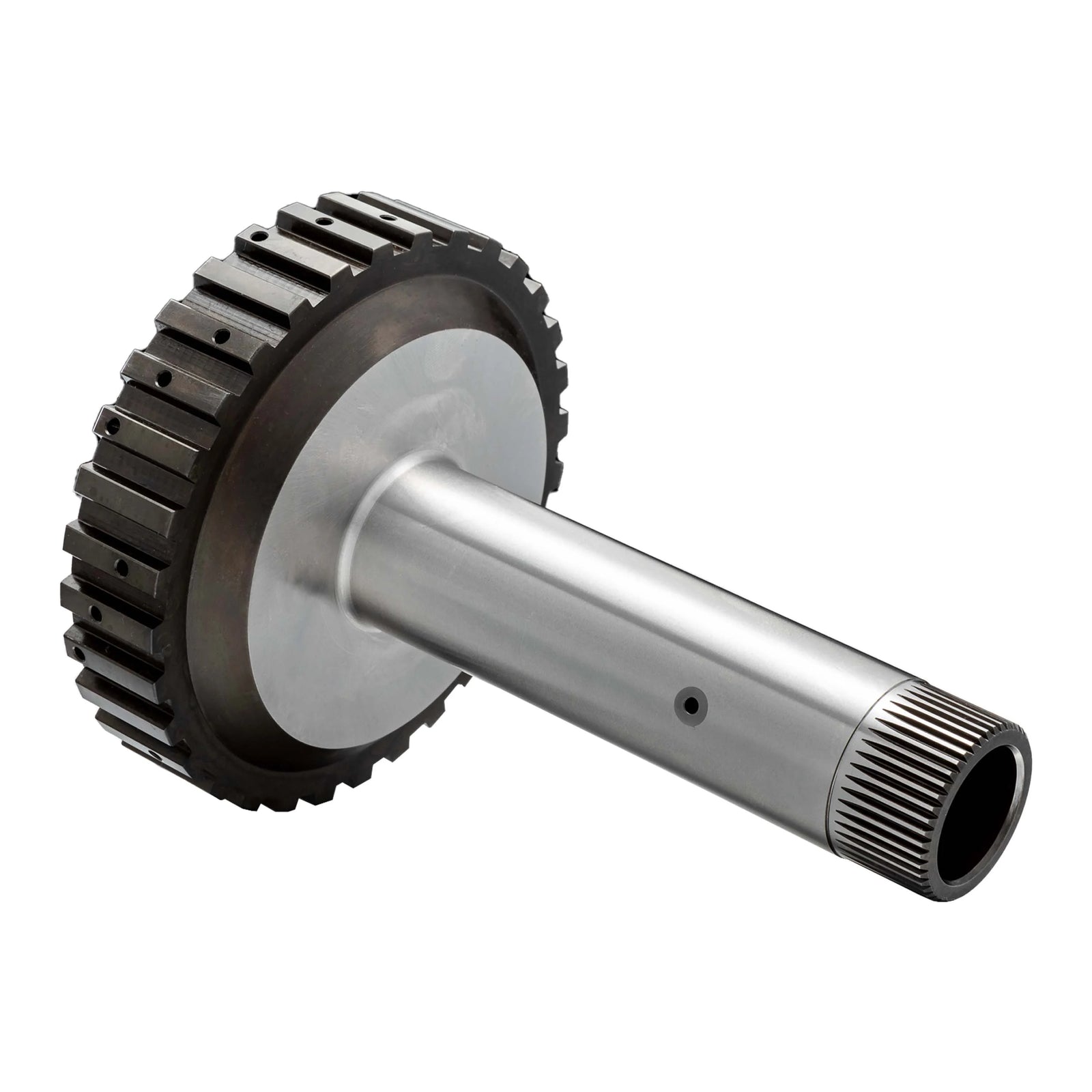

Upgraded Billet OD Clutch Hub Intermediate Shaft for Ram 6.7L Cummins

Upgrade your 2007.5-2018 Ram 6.7L Cummins with the RevMax Billet OD Clutch Hub Intermediate Shaft Assembly, the strongest and only true billet forged overdrive clutch hub available for the 68RFE transmission. Unlike competitors who modify OEM shafts with cryogenic treatment and shot peening, RevMax's shaft is hot forged from 4340M/300M steel, which is nearly 100% stronger than the OEM 4130 steel. This significant difference in material strength ensures superior performance and reliability. The stock hub and shaft have a tensile strength of 97,200 PSI and a yield strength of 63,100 PSI, whereas RevMax's billet shaft boasts a tensile strength of 280,000 PSI and a yield strength of 230,000 PSI. Real-world testing at an independent, government-approved facility confirmed that the 300M forged hub outperforms both the OEM and competitor's shafts in torsional yield tests.

Impressive Patented Design

The RevMax 300M Billet Overdrive Clutch Hub offers more than just superior material strength. Its one-piece design eliminates the weak points found in the two-piece, friction-welded OEM and competitor shafts, reducing the risk of fractures and failures. Additionally, the shaft allows for customizable overdrive clutch pack setups, giving builders the flexibility to tailor their clutch stack to specific needs. The RevMax 68RFE-502 Billet OD Clutch Hub Intermediate Shaft Assembly can be installed in a completely stock transmission without any modifications or in a transmission with any current aftermarket drum assembly

Fits: 2007.5-2018 Ram 6.7L Cummins with 68RFE

Year Ranges	Make	Model	Series	Engine
2007.5-2018	Dodge	Ram	2500/3500	6.7L

Property	Values
Year Ranges	2007.5-2018
Make	Dodge
Model	Ram
Series	2500/3500
Engine	6.7L
