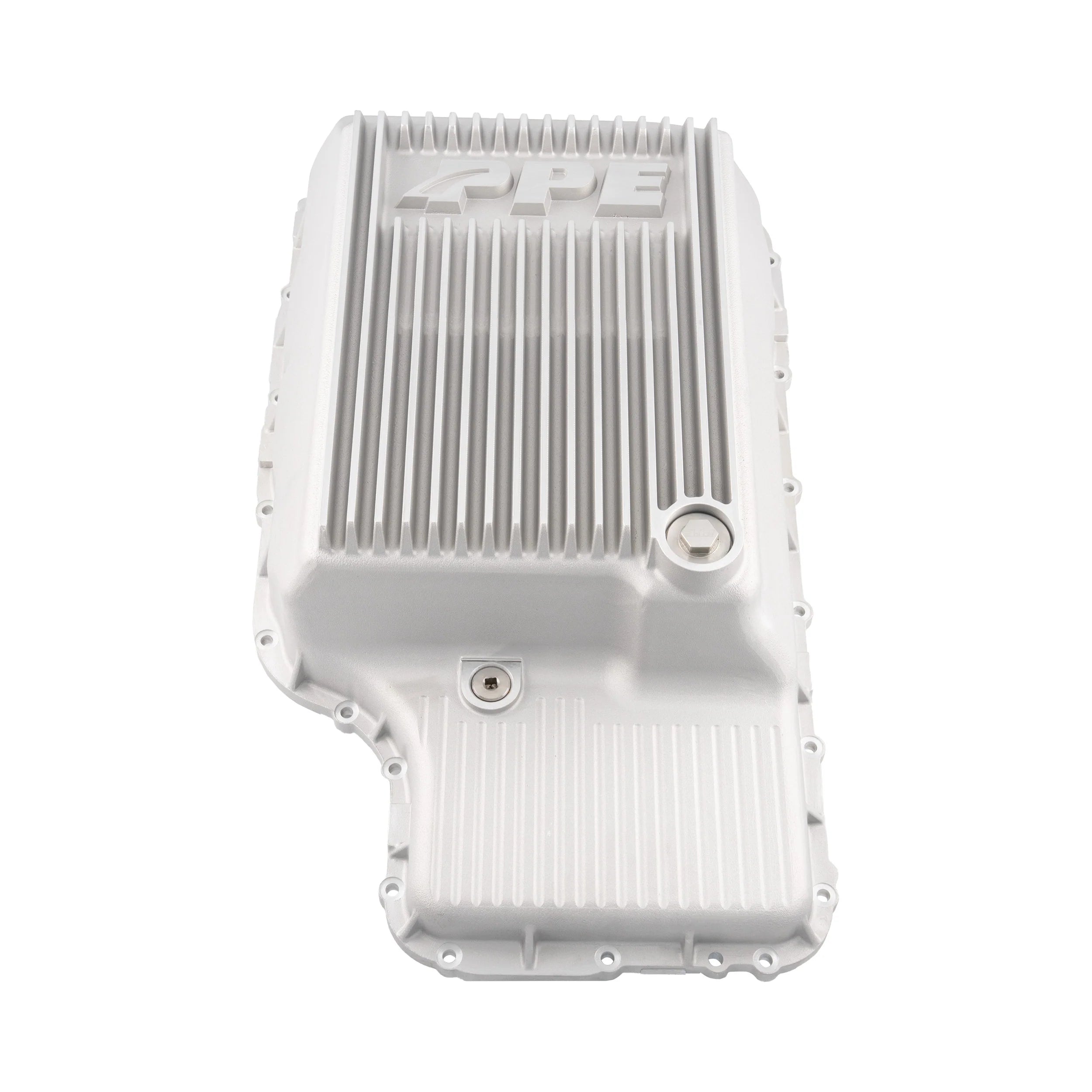

Heavy-Duty 10R140 Cast Aluminum Transmission Pan (Raw)

Features:

• Fits 2020-2026 Ford Super Duty
• Designed for 10R140 transmissions
• Adds 5 quarts fluid capacity
• A356.0-T6 cast aluminum construction
• Raw aluminum finish

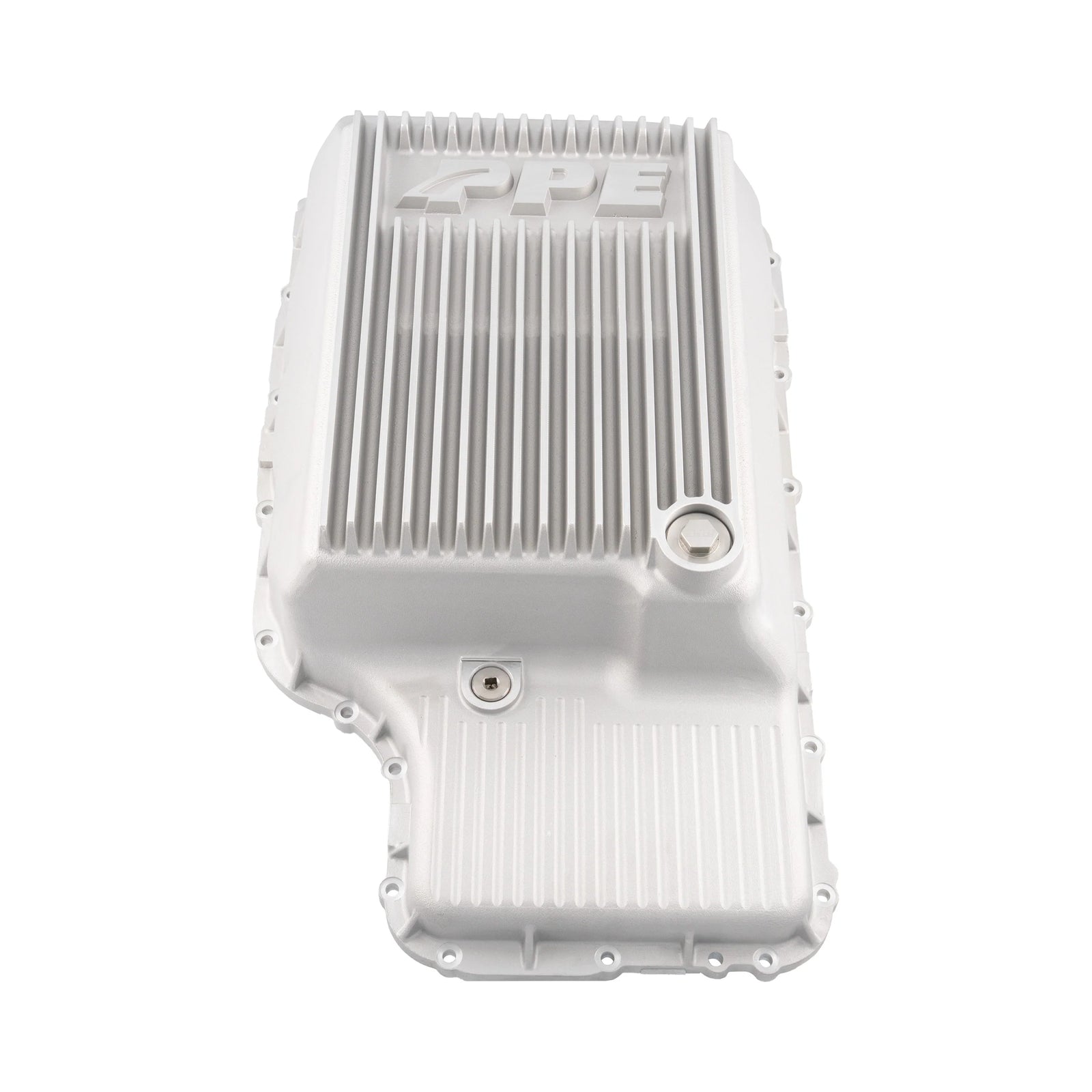

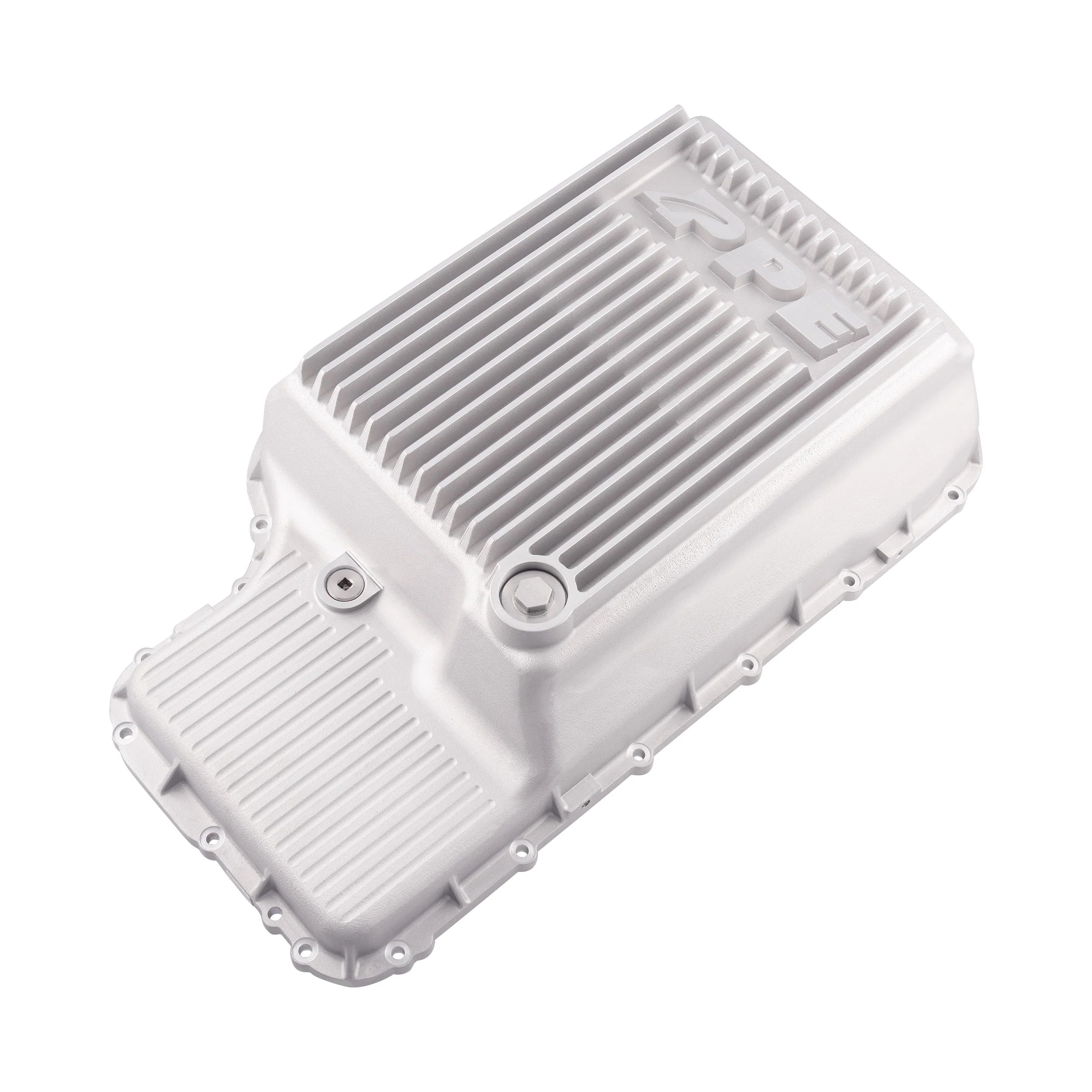

• Deep external cooling fins

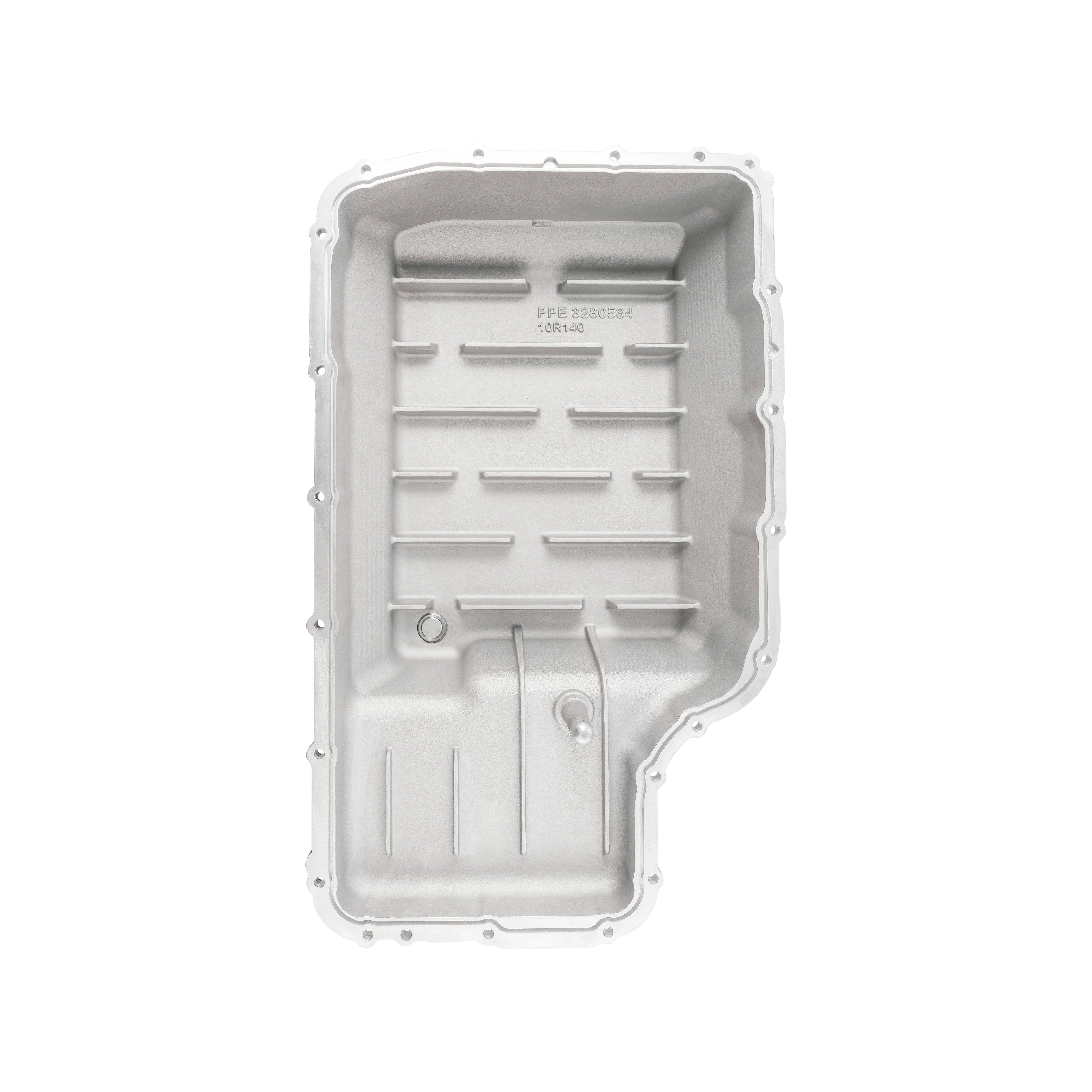

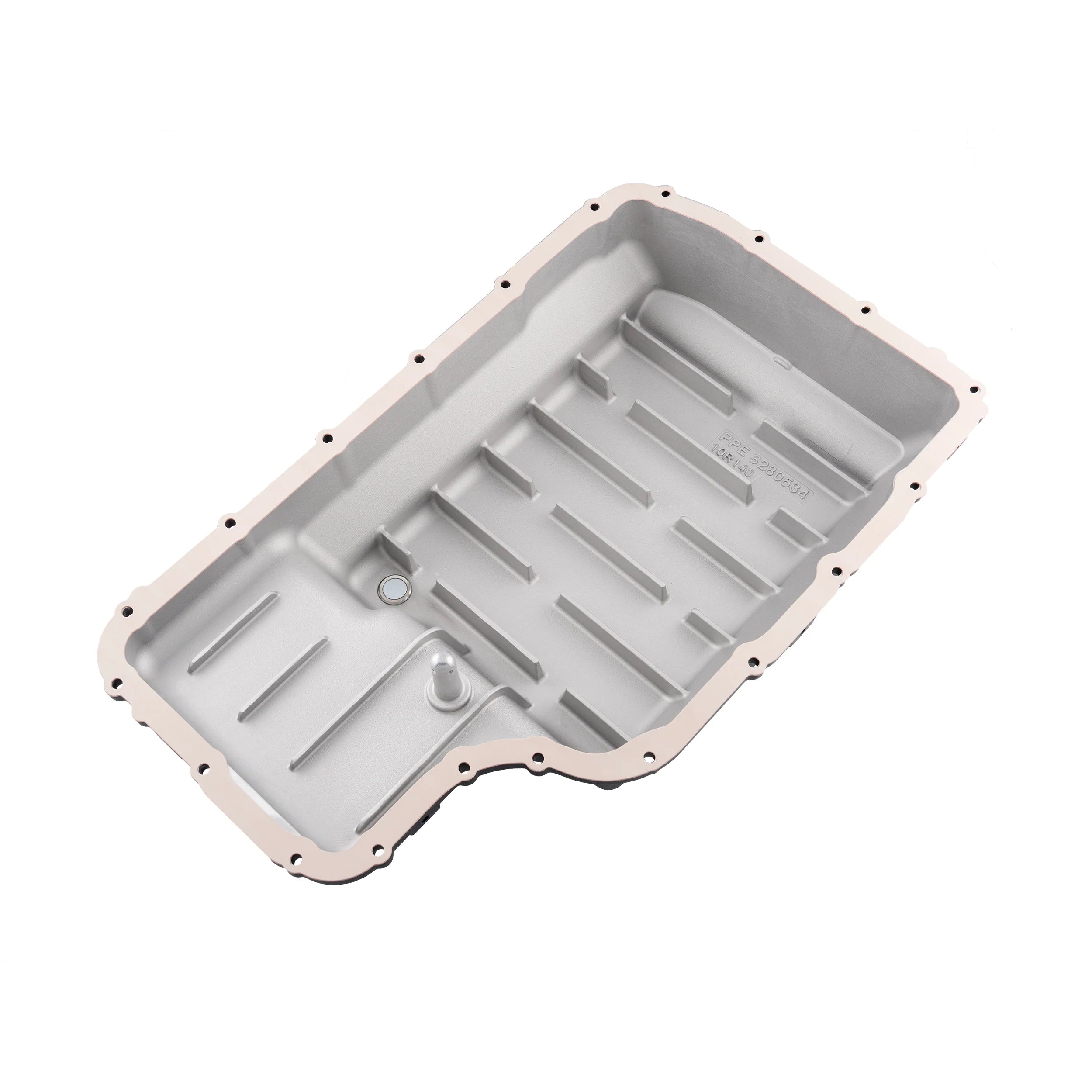

• Internal baffles reduce fluid slosh
• Improves transmission heat dissipation
• Magnetic stainless steel drain plug
• Integrated fluid level standpipe
• Includes fill fitting and plug
• Compatible with OEM gasket and filter

Give Your 10R140 The Cooling Advantage It Deserves

Heat is one of the biggest threats to automatic transmission life, especially when your truck spends time towing, hauling, or working hard every day. The PPE Heavy Duty Cast Aluminum Transmission Pan is built to help your 10R140 transmission stay cooler by increasing fluid capacity by an impressive 5 quarts, giving the system more fluid to absorb and manage heat over extended use. Its premium A356.0-T6 heat treated cast aluminum construction transfers heat far more effectively than a factory stamped steel pan while also providing outstanding strength. Deep external cooling fins further improve heat dissipation and add extra protection against impacts from road debris. Additionally, the rugged cast design adds rigidity to the transmission assembly, making it a worthwhile upgrade for drivers who expect more from their Super Duty. From demanding job sites to long highway towing trips, this pan is designed to help your transmission perform with greater confidence while supporting long term durability.

Engineered To Improve Cooling Strength And Serviceability

Every detail of this transmission pan has been designed with performance and service convenience in mind. Permanent steel mold casting creates precise dimensions and a smooth finish, allowing compatibility with the factory gasket and filter for straightforward installation. Deep internal baffles increase fluid contact with the aluminum surfaces to improve heat transfer while also minimizing fluid movement during acceleration, braking, and uneven terrain. What's more, the external fins and internal baffles work together to create a reinforced cross bracing structure that improves impact resistance and overall strength. An integrated standpipe simplifies fluid level checks during the filling process, while the included fill fitting and fill plug make future maintenance easier. The 304 stainless steel drain plug features a high temperature rated neodymium magnet that captures ferrous metal particles before they continue circulating through the transmission. An integrated 1/8 inch NPT port with a pre installed plug also provides added flexibility for future temperature sensors or other compatible accessories.

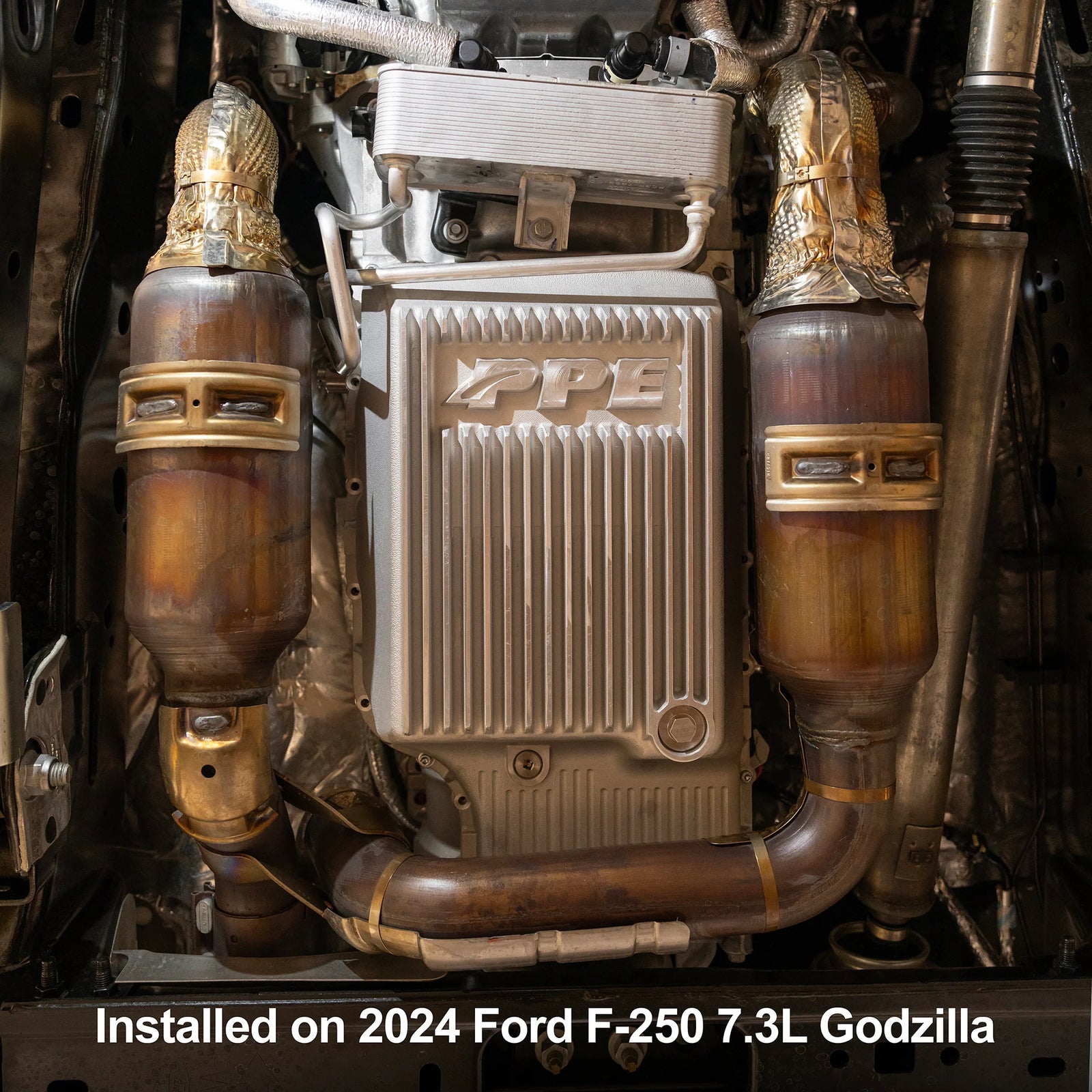

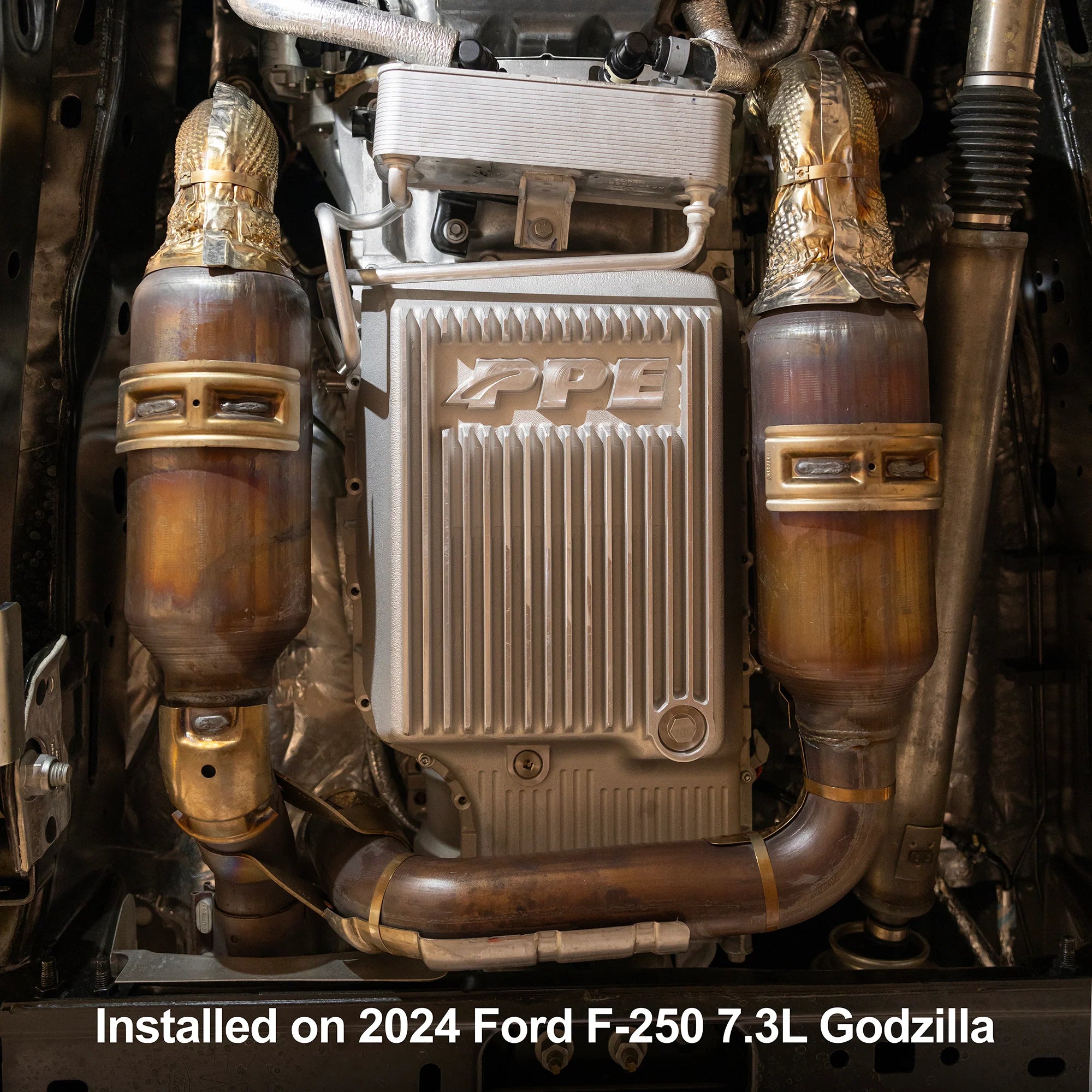

Fitment: 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F250/F350 Super Duty Gas/Diesel 6.2L/7.3L/6.7L

Notes:

• Designed specifically for the 10R140 transmission.
• Not compatible with the 10R100 TorqShift-G transmission.
• Some 2025 Super Duty 7.3L trucks may use either transmission.
• Verify your transmission type before ordering.
• PPE 3280534XX fits 10R140 applications only.
• PPE 3280536XX fits 10R100 applications only.
• Uses the OEM gasket and filter.
• Reference OEM part number Ford PC3Z7A194A.
• Raw aluminum finish may show natural casting marks.
• Fluid fill fitting and fill plug are included.
