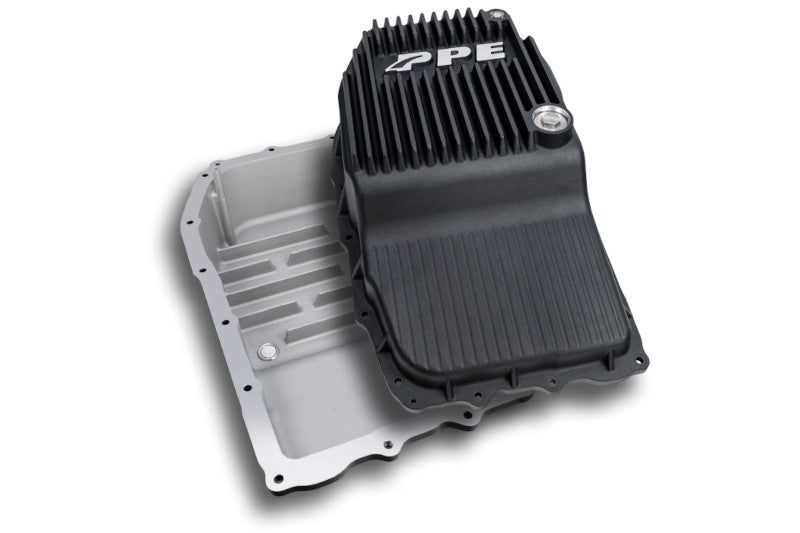

PPE 128051720 Heavy-Duty Cast Aluminum Deep Transmission Pan Black | 2015-2020 w/ 8L90 Transmission

Features:

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 3.8 quarts
• 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
• 7/8-inch internal baffles further improve heat dissipation, reduce fluid sloshing
• CNC machined grooves at bottom increase effective surface area which accelerate heat radiation
• High-power Neodymium-magnet-equipped billet stainless steel plugs with Viton O-rings
• Tapped and plugged 1/8-inch NPT port for optional temperature sensor
• Gussets provide extra support to the flange and increase robustness
• Compatible with OEM gasket
• Limited lifetime warranty

Enhances Heat Dissipation

PPE's Heavy-Duty Cast Aluminum Deep Transmission Pan Brushed is designed to hold an additional 3.8 quarts of fluid which greatly improves its heat dissipation. Combine this with the heavy-duty aluminum alloy which also dissipates heat better than the OE transmission pan, and you have impressive transmission heat dissipation.

Upgraded Features and Design

PPE integrates a fluid level check tube, sealed by a PPE half-inch stainless steel Neodymium magnet-equipped plug. The drain port features a one-inch, high-power Neodymium magnet-equipped stainless steel drain plug. Both plugs catch and hold harmful ferrous particles and keep them out of the transmission internals. PPE's Heavy-Duty Cast Aluminum Deep Transmission Pan Brushed is packed with features that greatly improve it over the OE pan.

Fits: 2015-2020 GM w/ 8L90 Transmission

Application Notes:

• This pan does not fit 2019 and newer Silverado/Sierra 1500 with 8L90 Transmission
• Make sure your vehicle is equipped with the 8-speed transmission even if the Year/Make/Model of your vehicle falls in the range of the application list.
