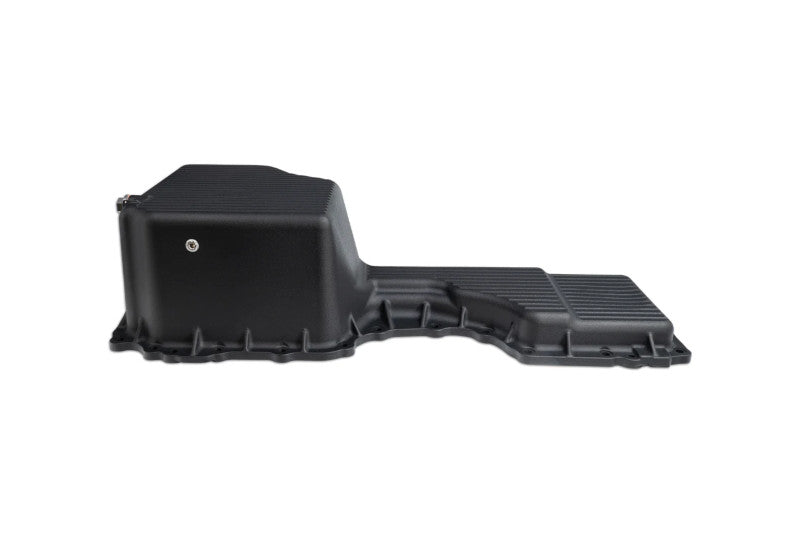

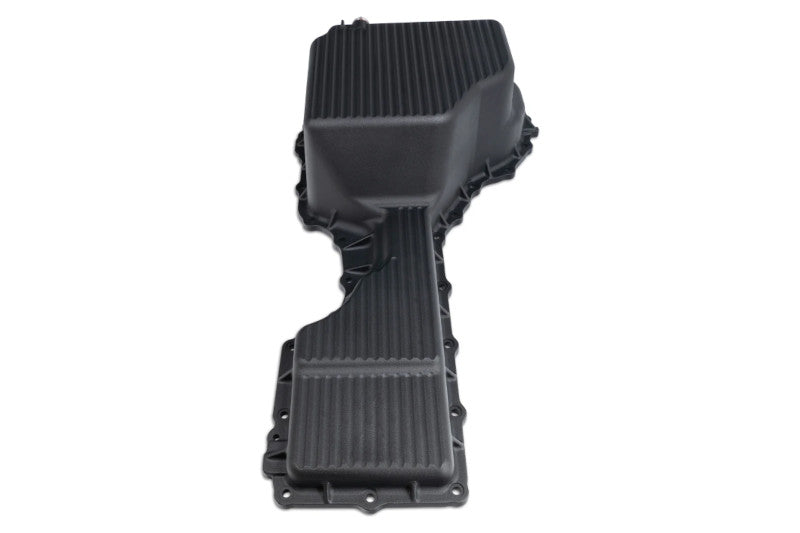

PPE 114053020 Heavy-Duty Black Aluminum Engine Oil Pan | 2017-2019 Silverado/Sierra 2500HD/3500HD 6.6L

Features:

• Increases oil capacity by 2 quarts
• High-grade A356.0-T6 heat treated cast aluminum
• CNC machined grooves at bottom promote heat radiation
• Hardened billet stainless steel drain plug with neodymium magnet and washer
• 1/8-inch NPT port for optional temperature sensor
• Gussets and thick flange add strength and rigidity
• CNC machined flange grooves promote a complete seal
• Lifetime warranty

Adds Improved Oil Pan Drainage

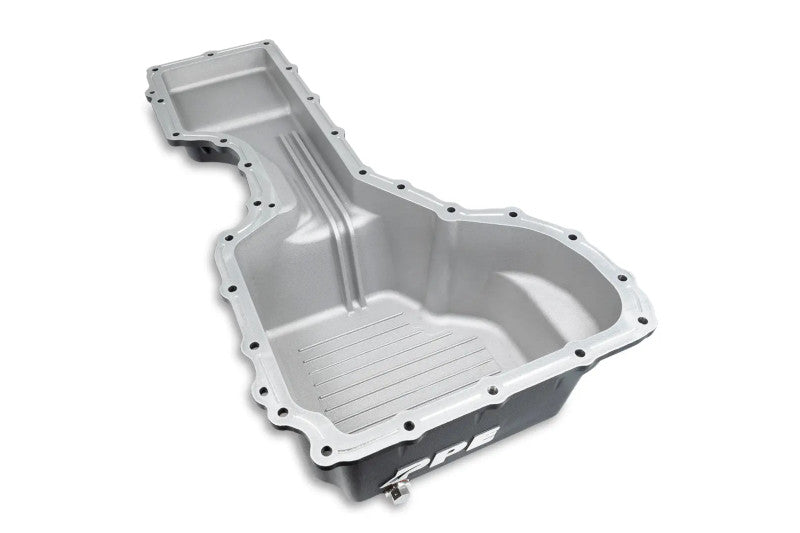

The OE Duramax L5P has an oil drainage problem, it doesn't drain more than over half a quart of its dirtiest oil. These heaviest parts of the oil settle in the bottom of the valley of the OE oil pan, this oil is trapped and never drained, immediately contaminating your fresh oil. Luckily, PPE has solved this issue with their flat, angled bottom for a more complete oil drain. Replace your factory-stamped steel oil pan and get rid of that dirty oil that you've been holding on to. Give your L5P a fresh, clean start with this simple bolt-on upgrade.

Lowers Temperatures & Adds Longer Service Life

The PPE Heavy-Duty Deep-Capacity Cast Engine Oil Pan boosts your engine's fluid capacity and thermal endurance, extending its service life. Engine temperatures are further reduced thanks to the thick, cast aluminum alloy construction and internal ribs that add strength and rigidity. Additionally, the PPE L5P Oil Pan features a convenient NPT port for temperature sensor installation. It also includes a billet, hardened stainless steel drain plug with a powerful neodymium magnet to capture metal particles, preventing internal damage. An O-ring is provided to ensure a tight seal.

Fits: 2017-2019 GM 6.6L Duramax

Application Notes:

• Recommendation Disclaimer: Replace with a new copper washer after each service.
• Part #114052002 14mm Copper Washer

Year Ranges	Make	Model	Series	Engine
2017-2019	GM	Silverado/Sierra	2500HD/3500HD	6.6L

Property	Values
Year Ranges	2017-2019
Make	GM
Model	Silverado/Sierra
Series	2500HD/3500HD
Engine	6.6L
