ICON K77101 0-2in Stage 2 Suspension System | 01-10 GM 2500/3500

2001-2010 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System Features:

• 0-2" adjustable lift height over stock
• Vehicle specific tuned 2.0" front and rear shocks for superior shock damping and control
• Improved ride quality over stock with no change in towing capacity
• Wheel travel increase of 2" over stock
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant anodized aluminum shock bodies

The 2001-2010 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System Offers Improved Ride Quality Over Stock

A comfortable ride does not happen without having quality suspension components. For the 2001-2010 GM 6.6L Duramax 2500HD / 3500HD, the best way to take your suspension performance to the next level is with the 2001-2010 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System. It includes ICON's V.S. 2.0 Aluminum Series IFP front shocks, 2.0 Aluminum Series IFP rear shocks, and Delta Joint UCAs. There is no better way to optimize the comfortability of your ride through added suspension strength, improved alignment, a taller ride height, and component longevity.

UCAs w/ Patented Delta Joint

The 2001-2010 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System includes the tubular version of ICON's Delta Joint UCAs. The featured delta joint is much stronger and more angular than the stock uniballs. Each delta joint features a zinc-plated housing to provide additional corrosion resistance and improve the durability for more intensive applications. The grease seal on each delta joint is included to help repel harmful elements from getting into the inner workings of the joint for more free movement and a noise-free operation. When combined with the V.S. 2.0 Aluminum Series IFP front and rear shocks, your suspension will be well equipped to hit streets or the trails.

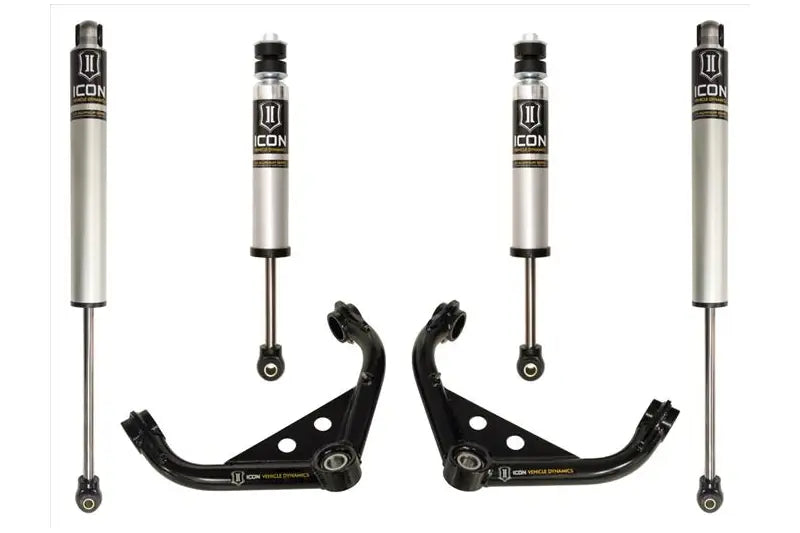

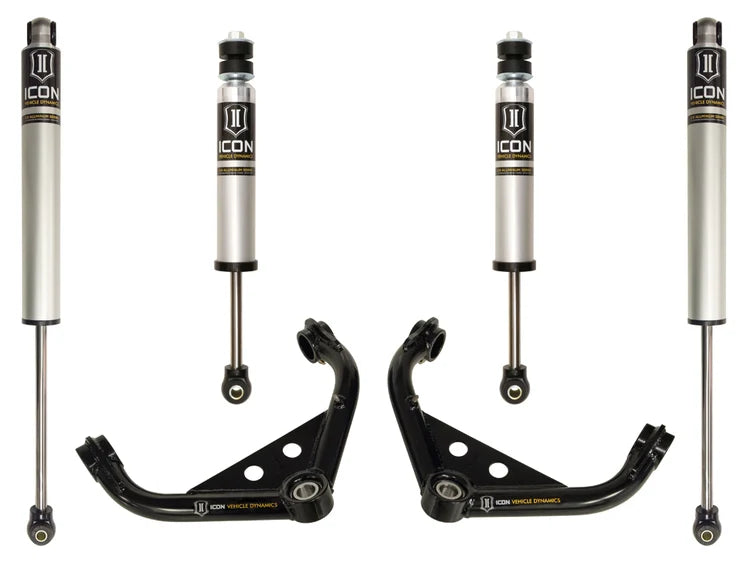

Parts Included:

• (2) 2001-2010 GM 6.6L Duramax 2500HD / 3500HD ICON V.S. 2.0 Aluminum Series 0-3" IR IFP Front Shock w/ UCA 2.0 V.S. IR (Part# 76528)
• (2) 2001-2022 GM 6.6L Duramax 2500HD / 3500HD ICON V.S. 2.0 Aluminum Series 0-1" IR IFP Rear Shock (Part# 76529)
• (1) 2001-2010 GM 6.6L Duramax 2500HD / 3500HD ICON Tubular UCA DJ Kit (Part# 78550DJ)

Fitment: 2001-2010 GM 6.6L Duramax 2500HD / 3500HD

Tech Notes:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.25" Backspace / 13mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.50" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes
