ICON K62512 2.5in Stage 2 Suspension System | 2017-2022 F250/F350

2017-2019 Ford F250 / F350 6.7L Powerstroke ICON 2.5" Stage 2 Suspension System Features:

• Approximately 25% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag

The 2017-2019 Ford F250 / F350 6.7L Powerstroke ICON 2.5" Stage 2 Suspension System Offers Improved Ride Quality Over Stock

A comfortable ride does not happen without having quality suspension components. For the 2017-2019 Ford F250 / F350 6.7L Powerstroke, the best way to take your suspension performance to the next level is with the 2017-2019 Ford F250 / F350 6.7L Powerstroke ICON 2.5" Stage 2 Suspension System. It includes ICON's V.S. 2.5 Aluminum Series front and rear piggyback reservoir shocks, dual rate coil springs, and alignment cams. There is no better way to optimize the comfortability of your ride through added suspension strength, superior shock damping and control, a taller ride height, and component longevity.

Superior Damping and Control

The 2017-2019 Ford F250 / F350 6.7L Powerstroke ICON 2.5" Stage 2 Suspension System includes piggyback remote reservoir front and rear shocks that offer the necessary damping to comply with the massive spring rate of the factory torsion bar system. Whether you are hitting the public roads or going off for some fun on the trails, having these shocks on your 2017-2019 Ford F250 / F350 6.7L Powerstroke build will maintain the same control and drivability. Each shock is specifically tuned to this model truck and are combined with dual rate coil springs to optimize ride quality and comfort.

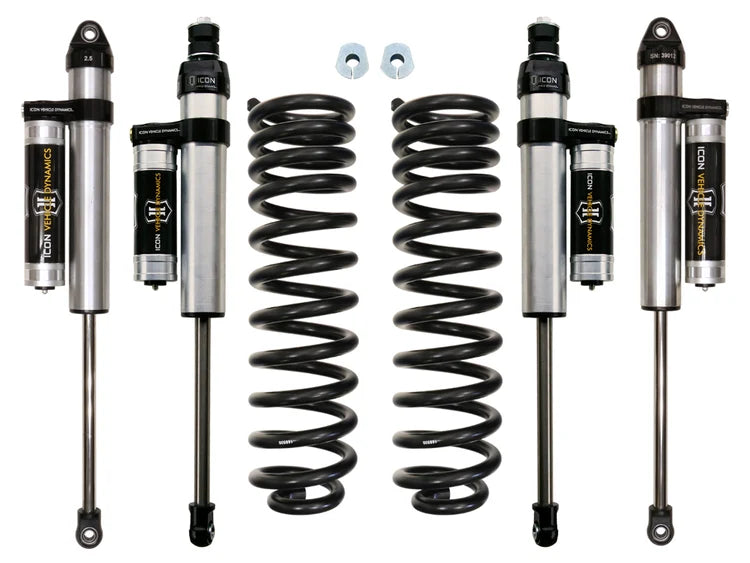

Parts Included:

• (1) 2005-2022 Ford F250 / F350 Powerstroke ICON V.S. 2.5 Aluminum Series 0-2.5" PB RR Front Shocks (Part# 67700P)
• (1) 1999-2022 Ford F250 / F350 Powerstroke ICON V.S. 2.5 Aluminum Series 0-3" PB RR Rear Shocks (Part# 37705P)
• (1) 2005-2022 Ford F250 / F350 Powerstroke ICON Front 2.5" Dual Rate Coil Springs Kit (Part# 62510)

Fitment: 2017, 2018, 2019 Ford F250 / F350 6.7L Powerstroke

Tech Notes:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
• APPLICATION NOTE #115: LIFT HEIGHTS BASED ON 4WD CREW CAB DIESEL
• APPLICATION NOTE #119: RARE CASES REQUIRE A 2.6 DEGREE ALIGNMENT CAM ON ONE SIDE OF VEHICLE FOR PROPER CASTER SPLIT
• Ships in multiple boxes

Year Ranges	Make	Model	Series	Engine
2017-2022	Ford	Super Duty	F250/F350	6.7L

Property	Values
Year Ranges	2017-2022
Make	Ford
Model	Super Duty
Series	F250/F350
Engine	6.7L
