BDS FOX88326100 FOX 2.5 PES DSC Rear Shocks - 4-6in Lift | 17-23 F250/F350 BDS
Click to open expanded view

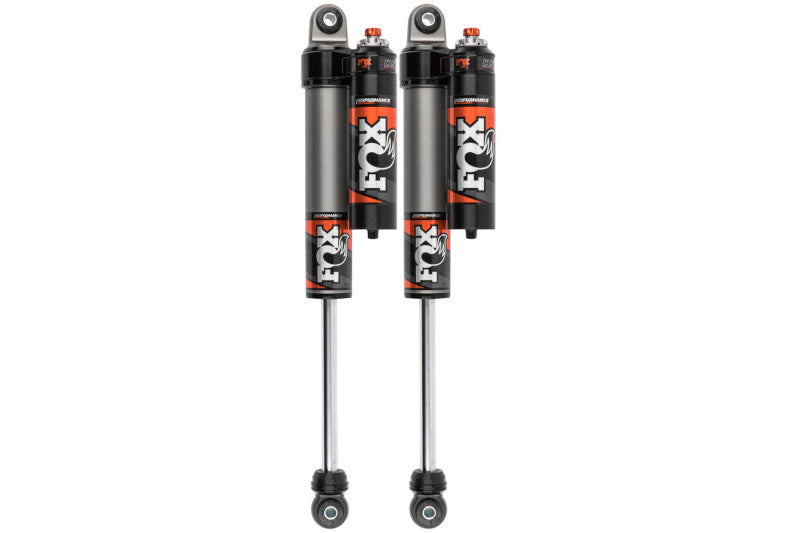

BDS FOX88326100 FOX 2.5 PES DSC Rear Shocks - 4-6in Lift | 17-23 F250/F350 BDS

Manufacturer: BDS Suspension

SKU: BDSFOX88326100
Price
$1,599.95
Out of stock - Call for Availability
Ships From Manufacturer in 1-3 Days

Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.

Body 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir External reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 7/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing PTFE-lined, heat-treated, alloy steel spherical
Adjuster Type DSC - Dual Speed Compression
Extended 34.930
Compressed 21.350
Travel 13.580
Top Mount Eyelet
Bottom Mount Eyelet

Vehicle Fitment: 2017, 2018, 2019, 2020, 2021, 2022, 2023 Ford F-250/F-350 Super Duty

Product Image Note: Image is representative. Actual product may vary.

BDS Kits: This kit is intended for use with BDS lift systems and is generally not ordered by itself as several other components are required to make a complete BDS lift kit.
Year Ranges Make Model Series Engine
Ford Super Duty F250/F350
Property Values
Year Ranges
Make Ford
Model Super Duty
Series F250/F350
Engine
