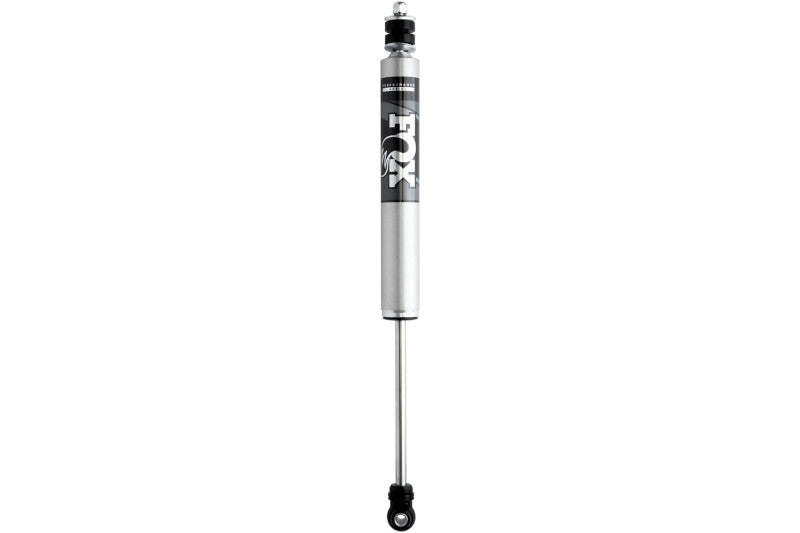

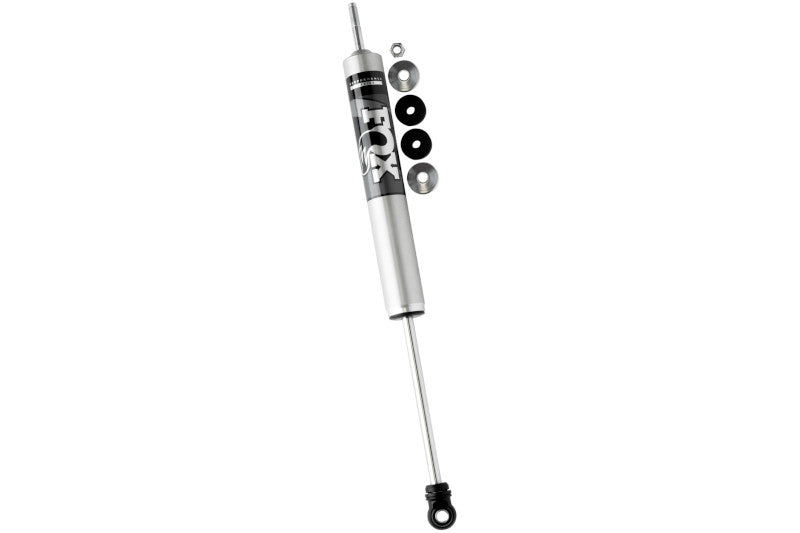

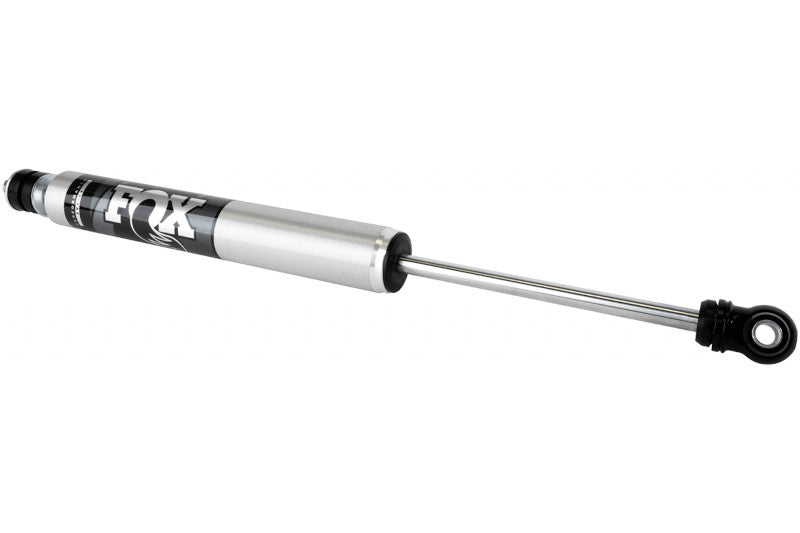

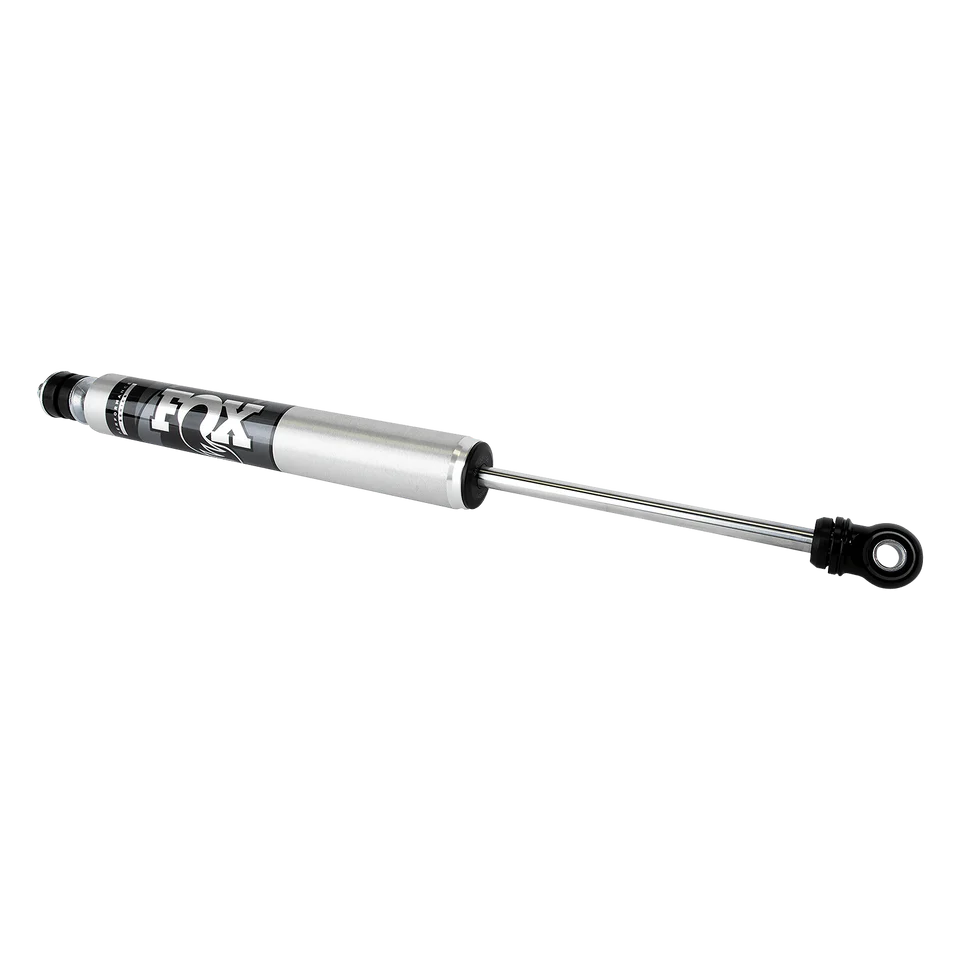

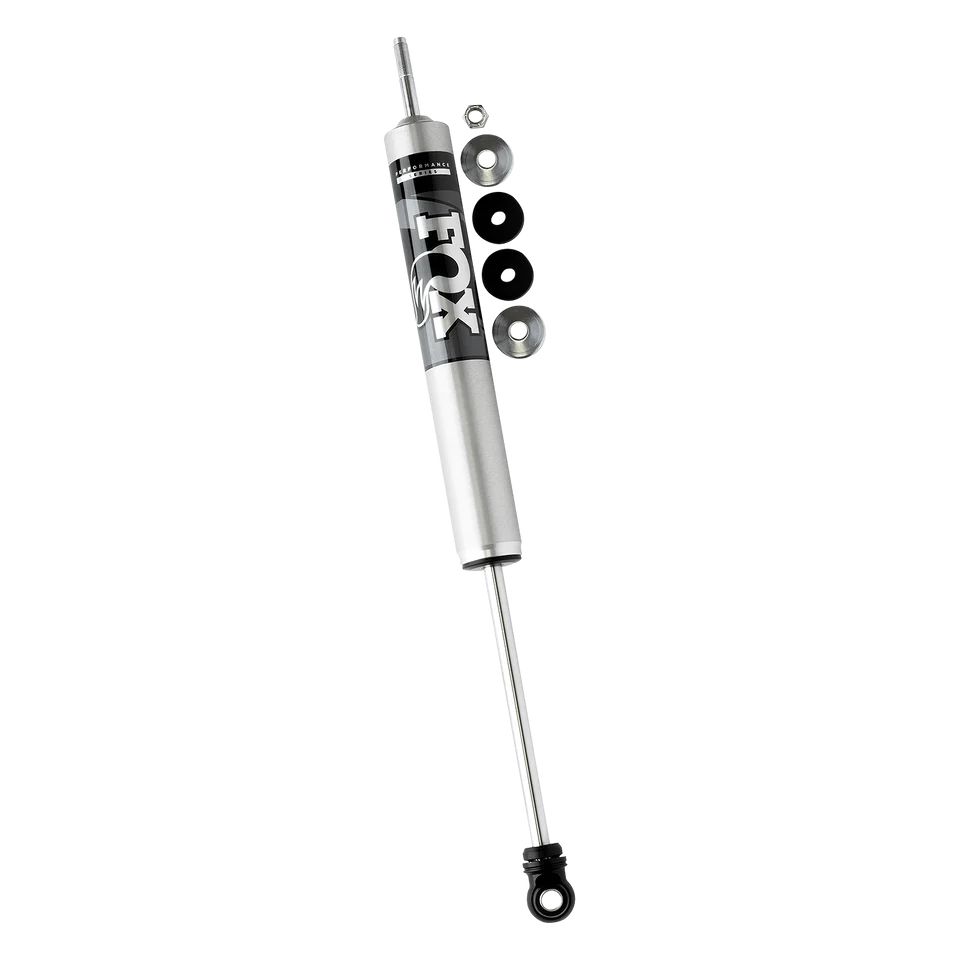

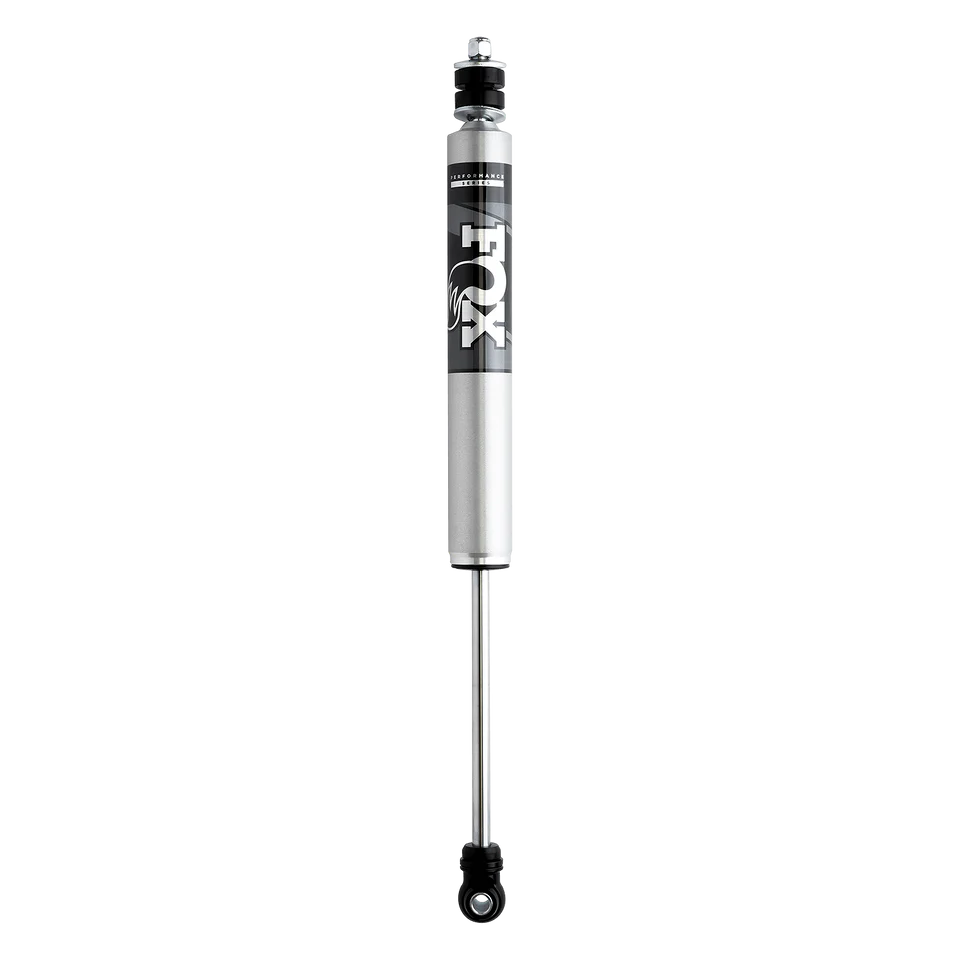

FOX 985-24-156 2.0 Performance Series IFP Front Shock for 4-5in Lift | 2017-2024 F250/F350 4WD

Features:

• 2.0" Impact extruded 6061-T6 aluminum body
• Clear-anodized plating for a durable finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum components
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Quiet nitrile rubber bushings allows for increased suspension articulation
• Internal floating piston eliminates oil aeration
• Straightforward bolt-on installation
• Sold individually

Superior Super Duty Front Shock Upgrade by FOX

It's no secret that the factory front shocks equipped on your 2017-2024 Super Duty leaves a lot to be desired in terms of overall off-road capability and on-road comfort. Fortunately, the solution is made easy and affordable with the FOX 2.0 Performance Series IFP Front Shock, designed specifically for 4-5" of lift. At its core, the shock features FOX’s race-proven performance valving technology. The Internal Floating Piston (IFP) mono-tube design is a marvel of engineering, effectively separating the shock oil from the high-pressure, nitrogen-charged gas chamber. This design eliminates oil aeration, allowing the shock to deliver its maximum performance consistently, paired with factory-tuned precision valving for a ride quality that is both predictable and refined, regardless of the terrain. What's more, the race-developed high-flow damping piston, alongside application-specific valving provides greater stability and control over stock shock absorbers.

Premium Construction & Design

Constructed from a 2.0” impact extruded and CNC machined 6061-T6 aluminum body, the FOX 2.0 not only promises enhanced cooling capacity but also ensures that rust will never be a concern, maintaining its performance and appeal over time. This clear-anodized finish not only protects but also adds a sleek, durable surface that withstands the elements and the test of time. This shock isn't just an upgrade; its statement of your commitment to quality, performance, and the pursuit of adventure. When it comes to installation, the shock bolts directly in place of your Super Duty's existing shock to make for a simple upgrade you can complete right at home.

Fits: 2017-2024 Ford F250/F350 Super Duty 4WD

Application Notes:

• Shock sold individually. A set of (2) will be required for a proper installation>
• Designed for trucks with 4-5" of front lift height.
• Lift Height is suggested by FOX. Due to many aftermarket lift kits, it is recommended a measurement is taken for proper application.

Measurements:

• Extended Length: 25.98"
• Compressed Length: 16.1"
• Travel: 9.63"

Year Ranges	Make	Model	Series	Engine
2017-2024	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2017-2024
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
