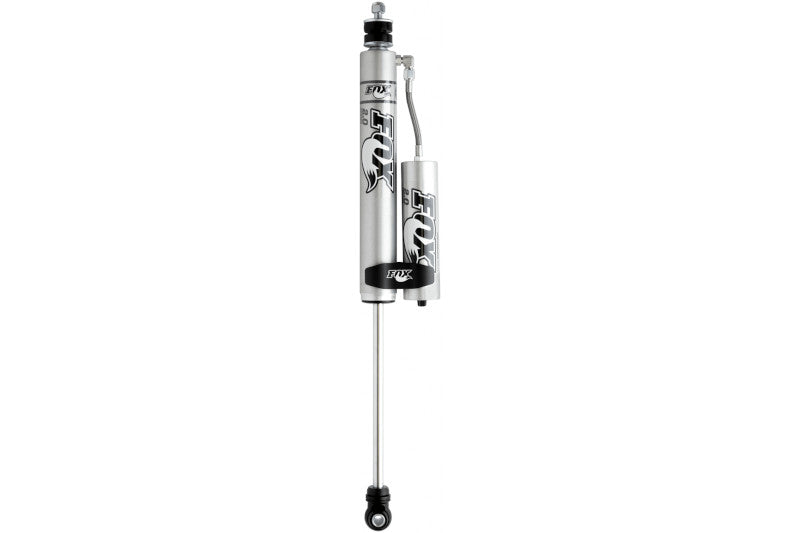

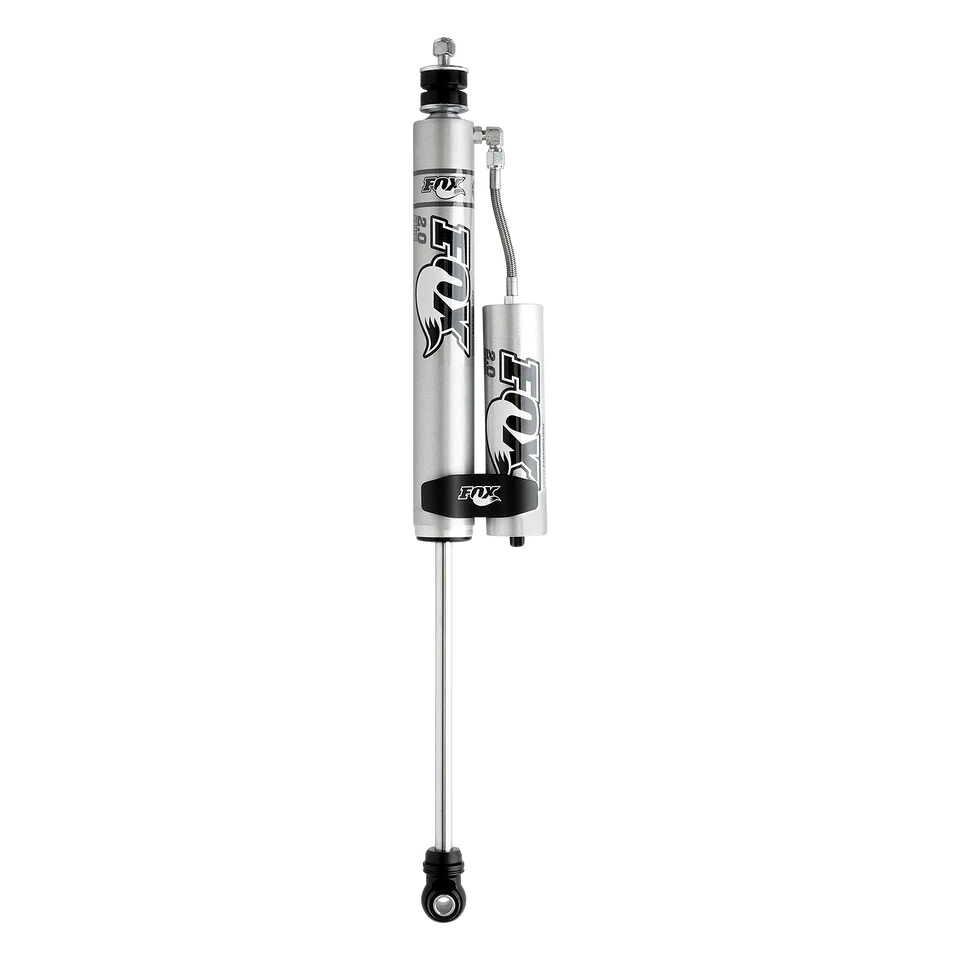

FOX 985-24-120 2.0 Performance Series Reservoir Front Shock for 0-1in Lift | 2005-2016 F250/F350 4WD

Features:

• 2.0" Impact extruded 6061-T6 aluminum body
• Clear-anodized plating for a durable finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum components
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Quiet nitrile rubber bushings allows for increased suspension articulation
• External remote reservoir improves heat dissipation
• Straightforward bolt-on installation
• Sold individually

Ultimate Super Duty Shock Upgrade by FOX

It's an unfortunate fact that the factory front shocks equipped on your 2005-2016 F250/F350 Super Duty aren't the best for any off-road escapades you have in mind. Luckily, the solution in made easy with the FOX 2.0 Performance Series Reservoir Front Shock! Each shock comes equipped with FOX's legendary race quality and was developed with a high flow damping piston matched with application-specific valving, providing you with a predictable ride quality that's capable of handling even the roughest road conditions. What's more, the shock comes equipped with an external remote reservoir which keeps the shock's temperature under control even when you're out pushing things to the limit. The remote reservoir is secured by the included universal mount and gives your truck a striking race look each time you set off for adventure.

High-Quality Aluminum Construction with Heat-Treated Alloy Steel Shaft

The FOX 2.0 Performance Series Reservoir Front Shock is built around a large 2" Impact extruded 6061-T6 aluminum body which is tough enough to handle just about any adventure you have in mind. The shock is then paired with a 5/8" hard chrome plated heat-treated alloy steel shaft that adds even more durability to your truck's suspension. You'll also benefit from the CNC-machined 6061-T6 billet aluminum components and Quiet nitrile rubber bushings that allow for increase suspension articulation when you head well off the beaten path. Best of all, this shock bolts directly in place of your truck's existing front shock to make for a simple and straightforward process you can complete at home.

Fits:

• 2005-2016 Ford F250/F350 Super Duty 4WD
• 2005-2016 Ford F350 Super Duty Cab & Chassis 2WD/4WD
• 2005-2016 Ford F450 Super Duty Cab & Chassis 2WD/4WD
• 2005-2016 Ford F550 Super Duty

Application Notes:

• Shock sold individually. A set of (2) will be required for a proper installation>
• Designed for trucks with 0-1.5" of front lift height.
• Lift Height is suggested by FOX. Due to many aftermarket lift kits, it is recommended a measurement is taken for proper application.

Measurements:

• Extended Length: 22.3"
• Compressed Length: 13.7"
• Travel: 8.6"

Year Ranges	Make	Model	Series	Engine
2005-2016	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2005-2016
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
