FabTech K2417DL 6in 4 Link Lift Kit w/ Dirt Logic Shocks | 2023-2024 F250/F350 4WD

Features:

• Imposing On & Off Road Prescense
• Improves off-road capability
• Front dirt logic 2.25 shocks
• Rear dirt logic 2.25 shocks
• Fit up to a 40-inch tire w/cutting
• Everything included to convert to 4 link
• Provides excellent articulation
• Limited lifetime warranty

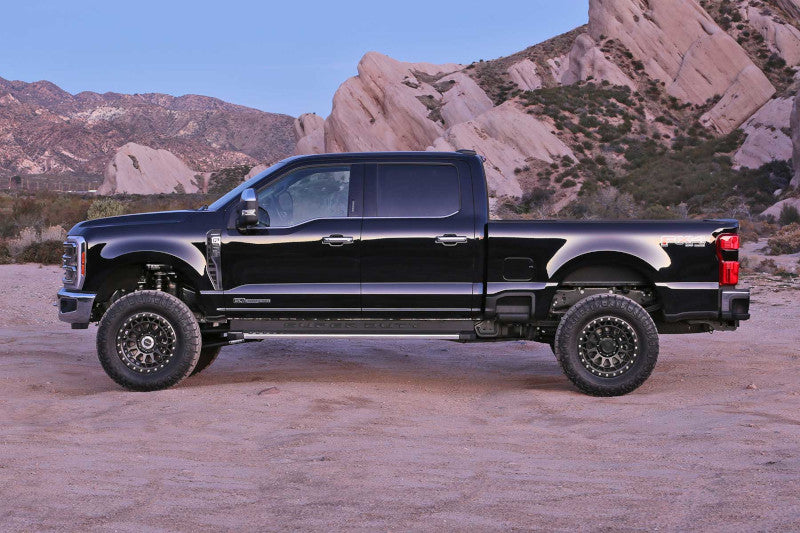

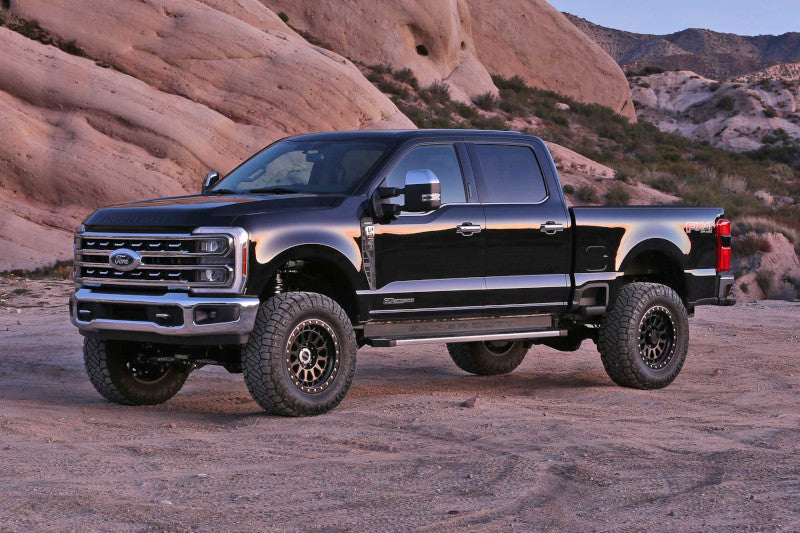

Impressive Stance & Capability

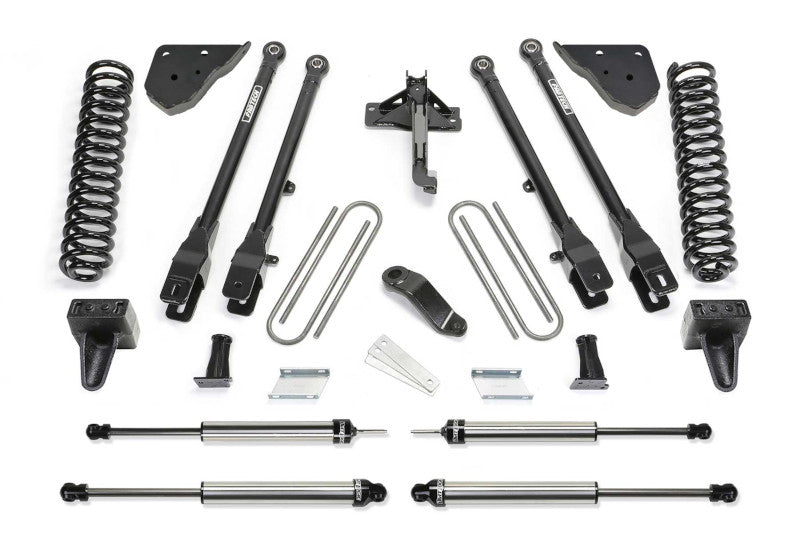

FabTech's 6-inch 4-link lift kit for the Ford Super Duty is designed to significantly enhance off-road capability while providing an impressive on road ride. Off-road, the increased suspension articulation lets you easily tackle tough obstacles. On-road, the lift kit minimizes caster changes during travel, resulting in enhanced driving stability. This kit includes heavy-duty components, such as link arms made from thick 2-inch OD steel with 1/4-inch thick brackets. The frame pivot side features 5-ton joints for exceptional strength and durability. The complete 4-link lift kit includes front and rear Dirt Logic 2.5 reservoir shocks, billet sway bar links, a track bar relocation bracket, a pitman arm, and more. The rear lift is achieved with a block and U-bolt kit.

Enhanced Shock Dampening Capability

Dirt Logic Front and Rear 2.25 shocks are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size sets them apart from other replacement shocks, offering superior performance both on and off-road. These shocks are pre-tuned for each Fabtech suspension, accommodating larger tires and providing exceptional all-around damping.

Fits: 23-24 F250/F350 4WD Diesel

Application Notes:

• Non dually models only.
• Will not fit gas motors.
• Does not fit vehicles equipped with Ford onboard scale system.

4 link Installation Instructions

Warning: This product can expose you to chemicals that are known to the State of California to cause cancer. For more information, visit www.P65warnings.ca.gov

Year Ranges	Make	Model	Series	Engine
2023-2024	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2023-2024
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
