FabTech K2413DL 6in Radius Arm Lift Kit w/ Dirt Logic 2.25 Shocks | 2023-2024 F250/F350 4WD

Features:

• Improves on and off-road handling
• Coil springs enhance ride quality
• Heavy duty components
• Impressive stance
• Allows fitment of large tires
• 5 year 60,000 mile powertrain warranty

Complete Lift Kit for Capability and an Aggressive Stance

FabTech has designed their 6in Radius Arm Lift Kit w/ Dirt Logic 2.25 Shocks to enhance on and off-road capability while giving your SuperDuty an imposing off-road stance. At the heart of the FabTech kit are their legendary tubular Radius Arms, which provide smooth and compliant handling on any terrain. Giving the extra 6 inches of front height are the Fabtech Coil springs; they are constructed of durable hot-wound steel and add 2 inches of wheel travel while providing a plush ride. In the rear are the rear lift blocks, which provide additional lift without changing ride quality in the rear. Working in conjunction with the extended-length Track Bar is the dropped pitman arm, for added steering response. The heavy-duty track bar mount centers the front axle under the truck to maintain full lock steering on 5" backspaced wheels. FabTech includes Dirt Logic 2.25 Shocks which are much larger and robust than the stock shocks, offering a huge improvement to dampening and comfort quality. To finish off the kit, there are brake line brackets to ensure the lines have more than enough room for the extra wheel travel this kit adds.

Adds Durability to Suspension

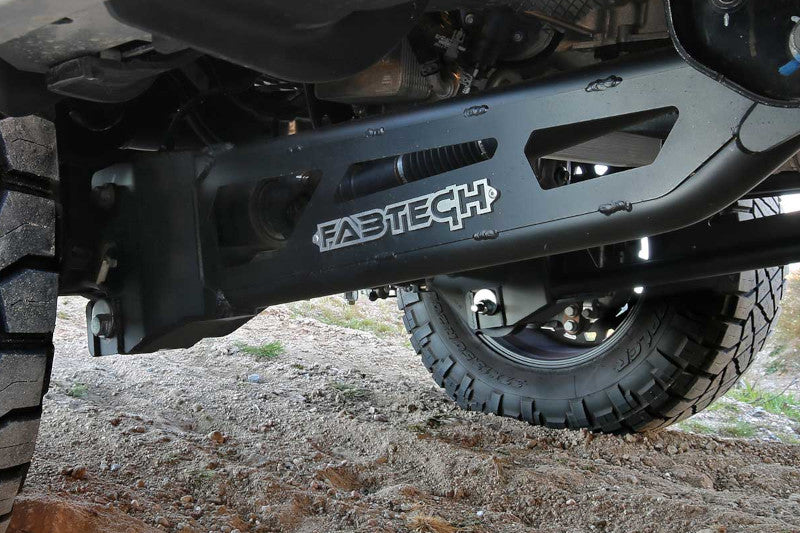

FabTech's 6in Radius Arm Lift Kit w/ Dirt Logic 2.25 Shocks you get superior ride quality with an aggressive stance, you're also adding strength to your suspension, giving you the confidence to take on demanding tasks. FabTech's Radius arms are constructed of tubular steel to withstand harsh impacts and have a stylish side plate with a laser-cut logo. The Track Bar Bracket is constructed of thick 1/4-inch steel to greatly strengthen your steering system. FabTech's Steering Stabilizer Bracket is also 1/4-inch steel to brace the steering stabilizer and reduce tire shimmy. For a suspension system that can withstand the harshest terrain while adding comfort and control, choose FabTech's 6in Radius Arm Lift Kit w/ Dirt Logic 2.25 Shocks.

Fits: 2023-2024 F250/F350 4WD

Application Notes:

• NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 257. DOES NOT FIT VEHICLES EQUIPPED WITH FORD ONBOARD SCALE SYSTEM
• TIRE SIZE - 38/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 38/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 38/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 40/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/CUTTING; TIRE SIZE - 40/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/CUTTING; TIRE SIZE - 40/12.50R20 WHEEL - 20X9 W/5" BS W/CUTTING

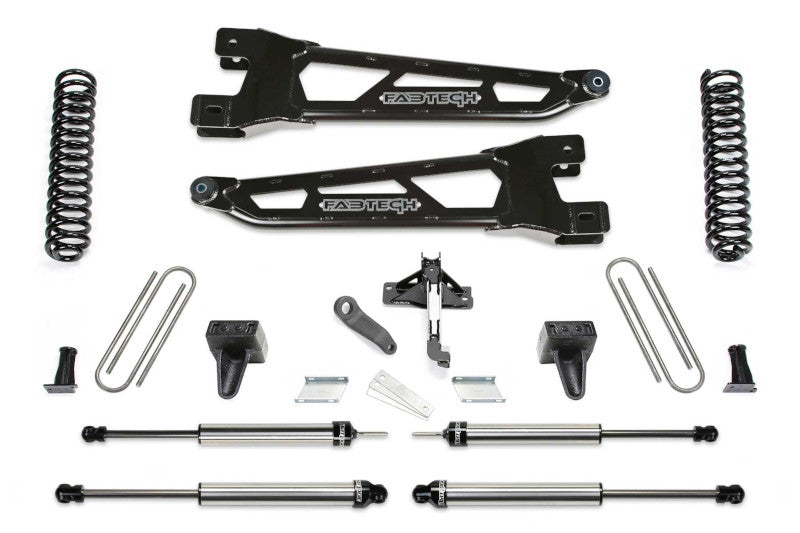

• Includes:
• Fabtech Radius Arms
• Fabtech Front Coil Springs
• Front Dirt Logic Shocks
• Track Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Block & U-bolt Kit
• Rear Dirt Logic Shocks

Warning: This product can expose you to chemicals that are known to the State of California to cause cancer. For more information, visit www.P65warnings.ca.gov

Year Ranges	Make	Model	Series	Engine
2023-2024	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2023-2024
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
