Zone Offroad D66 5.5in Standard Lift Kit | 2013-2018 Ram 3500 4WD Gas

• Progressive rate front coil springs improve ride quality and offroad performance.
• Radius arm drop brackets to correct caster and improve suspension geometry.
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle.
• Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles.
• Replacement rear lift blocks and u-bolts to lift and level the stance.

Description

• Front Lift Height: 5.5"
• Rear Lift Height: 5"
• Front Lift Method: Radius Arms
• Rear Lift Method: Cast Blocks
• Lift Type: Lift Kit
• Wheel Size: 17 x 9
• Back Spacing: 4.5"
• Max Tire Size: 35 x 12.5
• Wheel Size 2: 17 x 9
• Back Spacing 2: 5.75"
• Max Tire Size 2: 37 x 12.5
• Wheel Size 3: 20 x 9
• Back Spacing 3: 5.75"
• Max Tire Size 3: 37 x 12.5
• Is Adjustable: No
• Finish: Powdercoat
• Cutting Required: No
• Accommodates Factory Wheels: See Notes
• Welding Required: No

• Fits trucks equipped with the 6.4L gas engines.
• Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
• Fitment: Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• 6.4L Gas models will require exhaust modification to clear the front driveshaft.
• 5.7L Gas models may require modification.

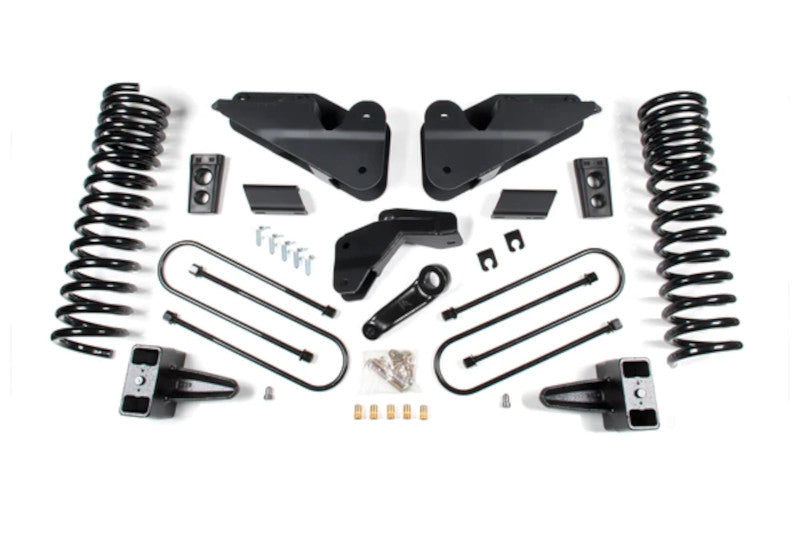

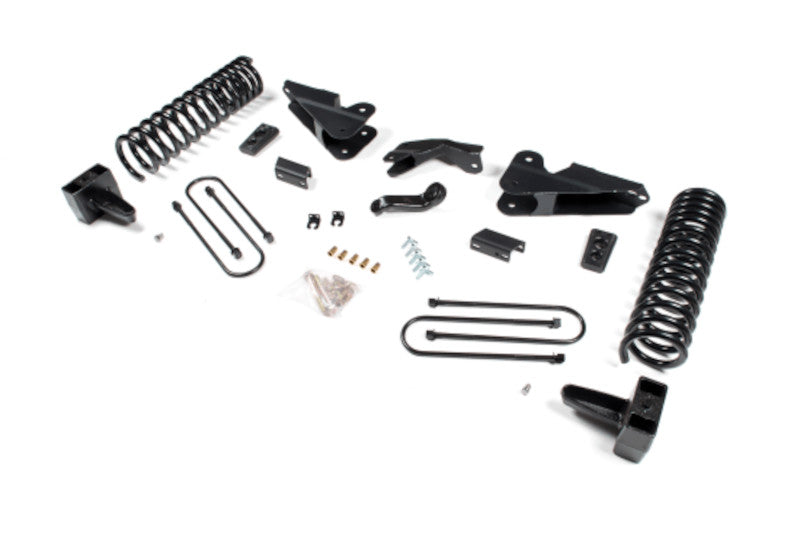

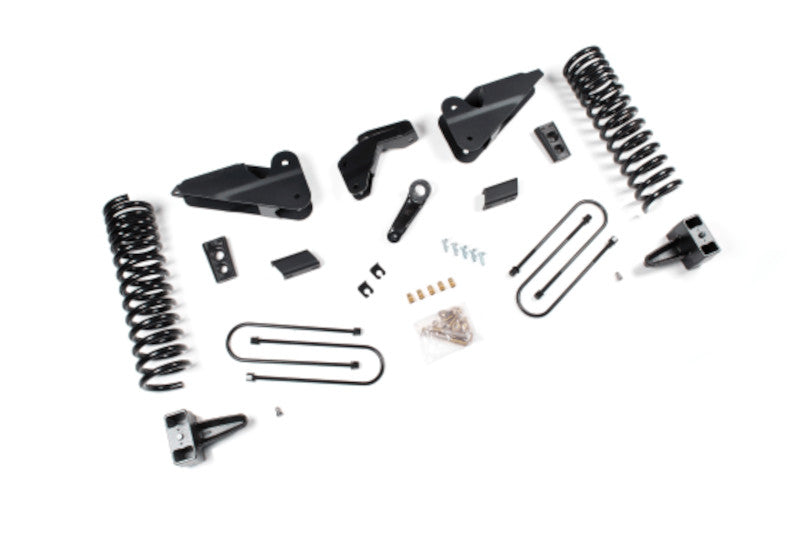

• All Necessary Mounting / Installation Hardware
• Bump Stops
• Coil Springs
• Dropped Pitman Arm
• Radius Arm Drop Brackets
• Rear Lift Block & U-Bolt Kit
• Sway Bar Relocation Brackets
• Track Bar Relocation Bracket
