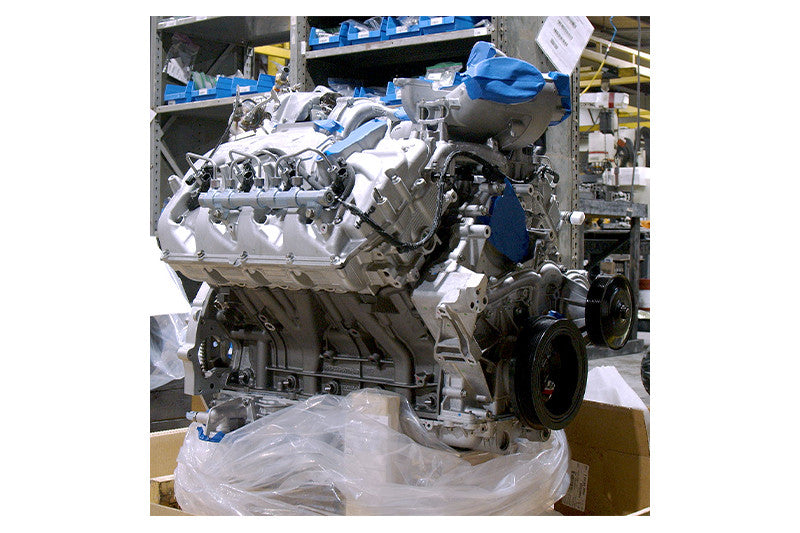

Choate Engineering CEP67PFWC12 6.7L Full Running Workhorse | 2012 Ford 6.7L Powerstroke Cab & Chassis

Features:

• Rated for 600 HP
• Built for heavy towing
• Fully balanced
• Enhanced and improved over the OE 6.7L
• 5 Year / 100,000 Mile Warranty

Designed for Heavy-Duty Work

The 6.7L Powerstroke is a great engine, theres no doubt, however it has room for improvement. Choate has taken the 6.7L Powerstroke to the next level with their 6.7L Full Running Workhorse. Engineered to effortlessly tackle heavy duty towing and demanding tasks, this sturdy engine is specifically designed to meet heavy-duty requirements. It boasts enhancements that surpass those of the Choate Engineering Daily Driver model, including O-Ringed Heads, Billet Flex Plate, Coated Pistons, Fly Cut and Delipped Pistons, Stage 2 Cam, Chromoly Pushrods, and Welded Cam Gear. The 6.7L Full Running Workhorse is engineered for heavy-duty work and has greatly improved durability over the OE 6.7L Fully assembled and equipped for easy installation, the Choate Engineering 6.7L Full Running Workhorse can handle anything you can throw at it.

Enhanced Over the OE 6.7L

The 6.7L Full Running Workhorse is designed specifically to be a complete upgrade over the OE 6.7L, fixing its issues and improving upon it. Utilizing CNC blueprinting, Choate precisely aligns the crankshaft with the engine block, ensuring smooth operation without friction. The 6.7L Full Running Workhorse includes new head gaskets, studs, bed seals, lifters, rear cover gasket, rear main seal, OE harmonic balancer, and flywheel. Additionally, Choate's 6.7L Full Running Workhorse is also fully balanced.

Choate Engineering solves prevalent issues found in the OE Ford 6.7L engine with their innovative 6.7L Full Running Workhorse. Among these issues is the occurrence of Main and Rod bearing clearance problems in the OE 6.7L. Choate's remedy involves precision machining to achieve the correct clearances and the utilization of upgraded bearings engineered to withstand heightened stress levels. Another common concern is the potential separation of OE 6.7L exhaust valves, which can lead to compression loss and piston contact, resulting in catastrophic engine failure. To avert this, Choate adds heavy-duty valves capable of sustaining high temperatures without separating. Moreover, OE 6.7L engines frequently suffer from cam tunnel misalignment. Choate addresses this issue by incorporating their proprietary bearings to ensure perfect alignment. Choate Engineering's 6.7L Full Running Workhorse is an incredibly durable and enhanced beast of an engine.

Fits: 2012 Ford 6.7L Powerstroke

Applications Notes:

• All 6.7 Powerstroke balanced assemblies from Choate Engineering come with the updated 6-bolt flexplate from 2013+ and require the customer to update the torque converter or purchase one from us directly.
• Before purchasing please verify the year model engine is compatible with your truck. 6.7 Powerstrokes Came stock from Ford with a 8-bolt flexplate and torque converter that are no longer manufactured.

Build Features:

• 6.7 Powerstrokes have a larger Hole Diameter for the motor mounts and bolts.
• Cylinder Block
• Bore block back to crankshaft center line
• Hone block to 12Rk finish
• Check crankshaft main and rod clearances
• Magnuflux crankshaft
• Balance rotational assembly
• Replace Main bearings, rod bearings, cam bearings, and Main bolts
• Steel Connecting Rods
• Inspect and condition rods
• Camshaft
• Inspect and polish camshaft
• Polish crankshaft
• Install Steel Pistons
• Pistons, rings, Pin retainers weight matched prior to crank balancing (optional ceramic and DFL coating available)
• Reman Heads and Resurface heads
• Magnuflux and pressure test heads
• Cut new valve seats and Cut valves
• Install new valve guides and valve seals
• Test spring tension
• Includes:
• 2 Water pumps
• 4 Thermostats
• Fuel Rail Pressure Sensor
• Front cover and gaskets
• Turbocharger Turbo
• Pickup tube
• Map Sensor
• Coolant Temp Sensor
• Intake Air Temp Sensor
• Exhaust Back Pressure Sensor
• Engine Oil Pressure Switch
• Crank Position Sensor
• Camshaft Position Sensor
• Oil Cooler
• Fuel Filter

Warning: This product can expose you to chemicals that are known to the State of California to cause cancer. For more information, visit www.P65warnings.ca.govNote: $500 Shipping surcharge will be added at checkout

Year Ranges	Make	Model	Series	Engine
	Ford	Super Duty	F250/F350	6.7L

Property	Values
Year Ranges
Make	Ford
Model	Super Duty
Series	F250/F350
Engine	6.7L
