Banks 26005 Boost Tube Upgrade Kit | 2020-2022 Silverado/Sierra 2500HD/3500HD 6.6L
Banks 26005 Boost Tube Upgrade Kit | 2020-2022 Silverado/Sierra 2500HD/3500HD 6.6L
- Price
- $698
Out of stock - Call for Availability
Ships From Manufacturer in 3-5 Days
Banks Power
Click to open expanded view
Highlights:
- Huge increase in size and flow over stock and competitors (3.5" vs 2.5")
- Hot Side flows 490 CFM @ 12" vs stock 388 CFM
- Cold Side flows 635 CFM @ 12" vs stock 435 CFM
- Constant 3.5in diameter tubing for the best flow
- Billet venturi couplers maintain boost pressure
- Mandrel-bent aluminized steel construction
- Allow the turbocharger to spool up faster
- Spring-loaded constant tension clamps
- Improves airflow by over 32% and 45%
- 5-ply heavy-duty silicone couplers
- Bung for a temperature probe

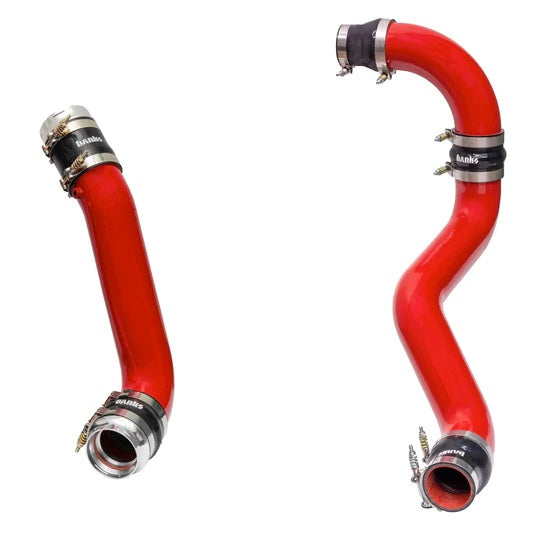

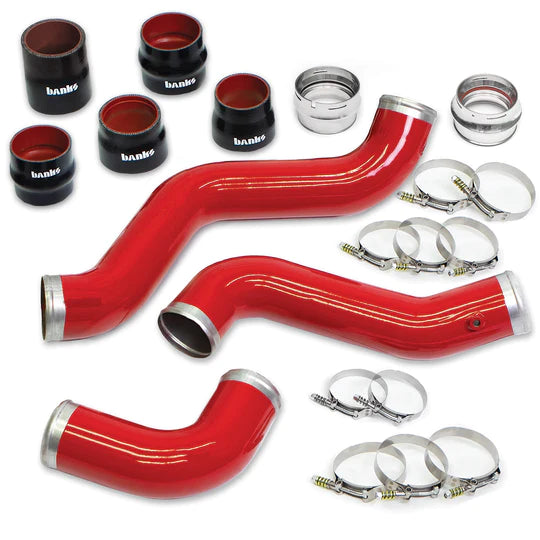

Banks Boost Tubes are the largest charge air cooler pipes in the industry measuring in at a full 3.5 inches. Every other competitive product on the market tops out at just 3.0 inches, and your factory pipes are only 2.5 inches with crushed bent corners and flimsy plastic components. By contrast, Banks Boost Tubes are made of high-quality aluminized steel for maximum strength and durability. With Banks Boost Tubes' smooth bends, your turbo can spool quicker thanks to improved boost pressure retention for maximum horsepower.
The Boost Tubes work with the stock Duramax intake components by using proprietary high-strength 5-ply silicone hoses. Unique to the 2020+ model, a pair of billet aluminum cold-side adapters are also used for the intercooler connection and the throttle body. These are specially made for the airflow requirements of the L5P and feature a Venturi-like taper on their inside diameter to maintain boost pressure and volumetric flow.
BANKS BOOST TUBES FLOW BEST
A better flowing charge air cooler pipe and a pair of unique billet coldside adapters results in less boost pressure loss and improved performance for your Duramax. By allowing for more air to your engine, your turbo can spool faster and breathe easier. This results in maximizing horsepower, reducing stress on intake components, and improved turbo spool response.
INDUCTION PERFECTION

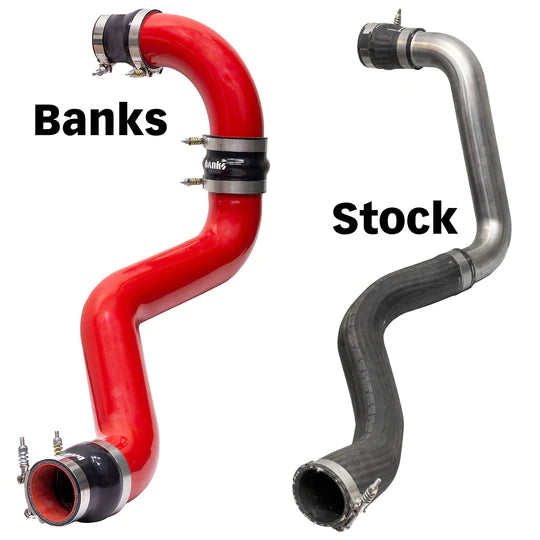

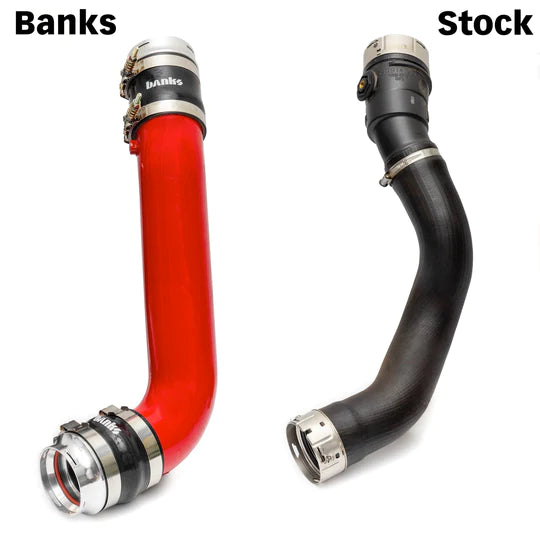

Even with the tighter engine space in the 2020+ L5P, Banks engineers were still able to maintain a full 3.5" diameter on both the hot and cold side of our boost tubes. Put up side by side with the factory intercooler piping, ours could practically eat the stock one whole!
GOING THE EXTRA MILE
GM revised, moved, and updated several components throughout the engine bay for the 2020+ L5P. Our engineers used CFD simulations to design the perfect taper and unique double parabolic billet couplers for both ends of the cold side tube to maximize airflow and reduce turbulence. No other manufacturer of intercooler pipes use this method of mounting.
DO IT RIGHT
For the 2020+ L5P, GM decided to go with a near full rubber hose design on the cold side. This added flex and swelling the hose provides leaves additional performance on the table. Banks Boost-Tubes will never crack or dry out like the the rubber OEM Charge Air Pipes and are mandrel bent from aluminized stainless steel to resist deformation from clamping force and other stresses for unparalleled durability and strength.
| Property | Values |
|---|---|
| Year Ranges | 2020-2022 |
| Make | GM |
| Model | Silverado/Sierra |
| Series | 2500HD/3500HD |
| Engine | 6.6L |
