BDS 900H 4 Lift Kit w/ NX2 Nitro Shocks & 3in Coil Spacers | 2007-2014 1500 4WD

Features & Benefits

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

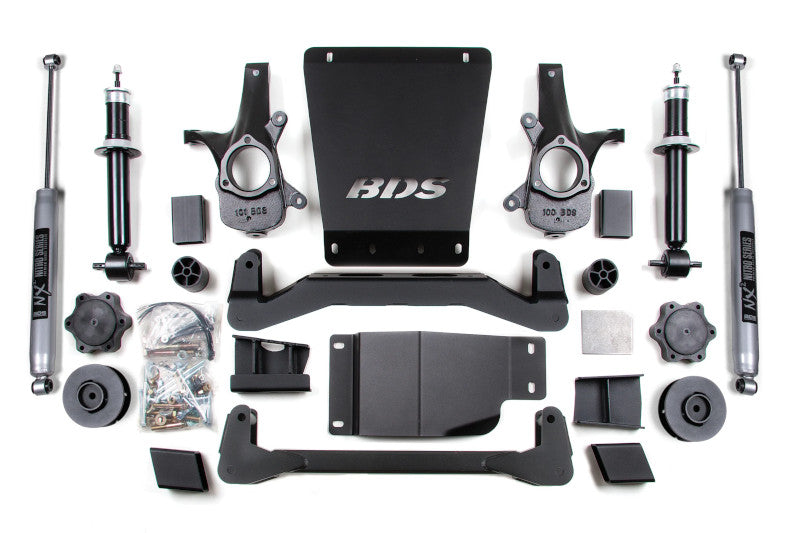

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Shock Option

NX2 Nitro Series

Rear Lift Option

These vehicles vary from level to 1-2" tail high from the factory. We offer a 2" rear kit as well as a 3" rear lift kit. Be sure to measure your vehicle and order the appropriate rear lift height to level your SUV.

3 Inch Lift Coil Spacer

• If your vehicle is closer to 1" tail high from the factory then this is the appropriate selection to level your vehicle.
• This kit includes 3" coil spacers and a track bar relocation system.

Vehicle Fitment

• 2007-2013 Chevrolet Avalanche
• 2007-2014 Chevrolet Suburban 1500
• 2007-2014 Chevrolet Tahoe
• 2007-2014 GMC Yukon 1500

Important Notes
