BDS 744FS 8in Lift Kit w/ FOX 2.0 Shocks - Cast Steel | 2014-2018 1500 4WD
Click to open expanded view

BDS 744FS 8in Lift Kit w/ FOX 2.0 Shocks - Cast Steel | 2014-2018 1500 4WD

Manufacturer: BDS Suspension

SKU: BDS744FS
Price
$2,427.60
Out of stock - Call for Availability
Ships From Manufacturer in 1-3 Days

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Go big with the BDS 8-inch lift kit for your 2014-2018 Chevy Silverado and GMC Sierra 1500 resulting in one of a kind lifted truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mount strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block / add-a-leaf combo and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Factory Control Arm Type

GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Recommended Tires & Wheels

  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 22 x 10 and 5.5 in. Backspace

Vehicle Fitment

2014-2018 GM Sierra/Silverado 1500 4WD with Cast Steel Factory Control Arms

Important Notes

  1. Requires frame bracket modification
  2. Requires differential modification to clear electric power steering
  3. Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for your application.
  4. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
  5. All wheel drive models require drive line modification.

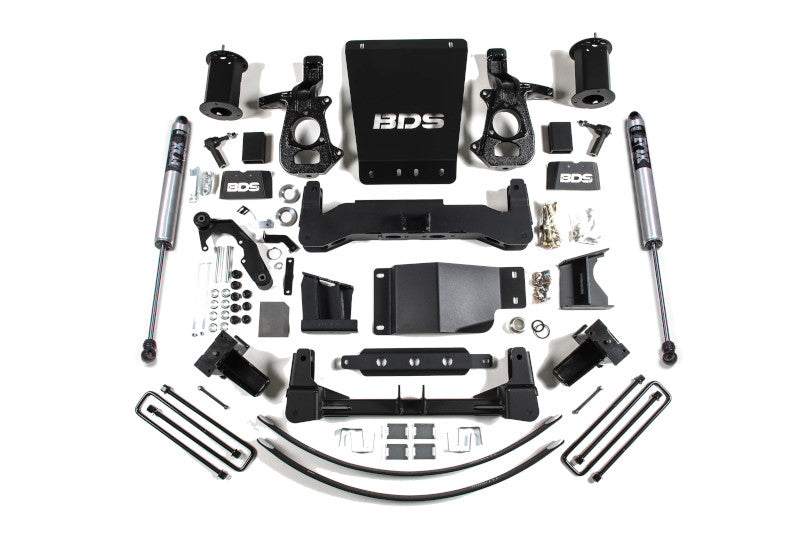

Kit Includes

  • 14-up Chevy 1500 8" Rear Box Kit (021607)
  • 14-up Chevy 1500 Knuckle-DRV-cast Steel (021810)
  • 14-up Chevy 1500 Knuckle-PASS-cast Steel (021811)
  • 14-up Chevy 1500 8" Frt Box Kit 1of2 (021802)
  • 14-up Chevy 1500 8" Frt Box Kit 2of2 (021803)
  • 14-up Chevy 1500 8" Strut Spacer Box Kit (021804)
  • Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224761 x2)
