BDS 733FS 4in Lift Kit w/ FOX 2.0 Shocks - Cast Steel | 2015-2019 1500 4WD
Click to open expanded view

BDS 733FS 4in Lift Kit w/ FOX 2.0 Shocks - Cast Steel | 2015-2019 1500 4WD

Manufacturer: BDS Suspension

SKU: BDS733FS
Price
$2,484.65
Ships From Manufacturer in 1-3 Days

Features & Benefits

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • High-strength replacement upper control arms provide durability and serviceability
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Factory Control Arm Type

GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Recommended Tires & Wheels

  • 32 x 12.5 with 17 x 8 and 4.5 in. Backspace
  • 33 x 12.5 with 18 x 9 and 5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Vehicle Fitment

  • 2015-2019 Chevrolet Suburban
  • 2015-2019 Chevrolet Tahoe
  • 2015-2019 GMC Yukon / XL
  • Fits models with Cast Steel Factory Control Arms

Important Notes

  1. Frame bracket modification and welding are required.
  2. 20" wheels with 5" to 5-3/4" backspacing are recommended to reduce trimming.
  3. AWD models may require front driveline modification
  4. Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference.
  5. Will not work with Auto-ride of Magneride Suspension

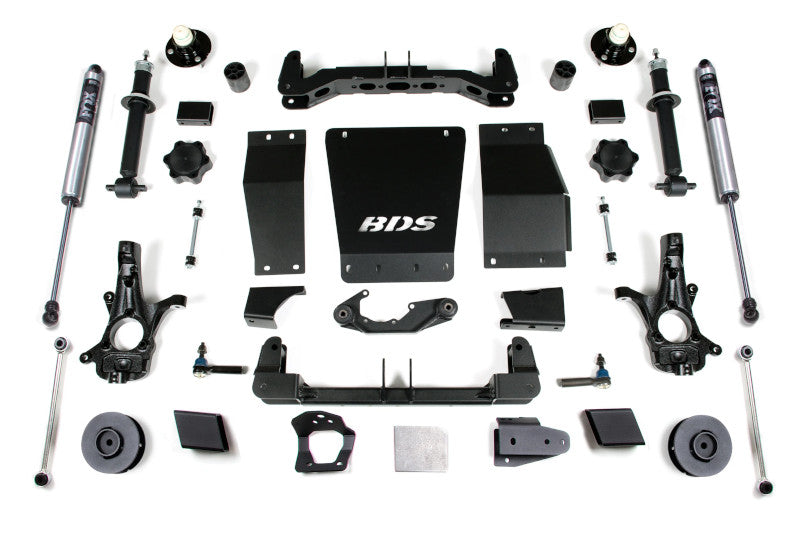

Kit Includes

  • 2015+ GM SUV Rear 3in Box Kit (021307)
  • 2014 Chevy 1500 4" Frt Box Kit (1of2) (021462)
  • 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Cast (021660)
  • 14-18 GM 1500 15-19 GM SUV 6" Frt Box Kit (2of2) (021663)
  • 2014 Chevy 1500 4" Strut Kit (98144)
  • Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1 (FOX98224719)
