BDS 711FS 6in Lift Kit w/ FOX 2.0 Shocks & Rear Blocks - Aluminum | 2014-2018 GM 1500 4WD

The BDS 6-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Rear Lift Option

5 Inch Block Kit

• The 5" rear block replaces the factory 1-1/4" block
• Nets 4" of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.


Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Factory Control Arm Type

GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Vehicle Fitment

2014-2018 GM Sierra/Silverado 1500 4WD with Factory Aluminum / Stamped Steel Control Arms

Important Notes

1. Strut compressor required
2. Requires frame bracket modification
3. Requires differential modification to clear electric power steering
4. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
5. If choosing the 5" rear block option, add-a-leaf # 111209 is recommended for a more level/tail high stance on crew cab models.
6. All wheel drive models require drive line modification.

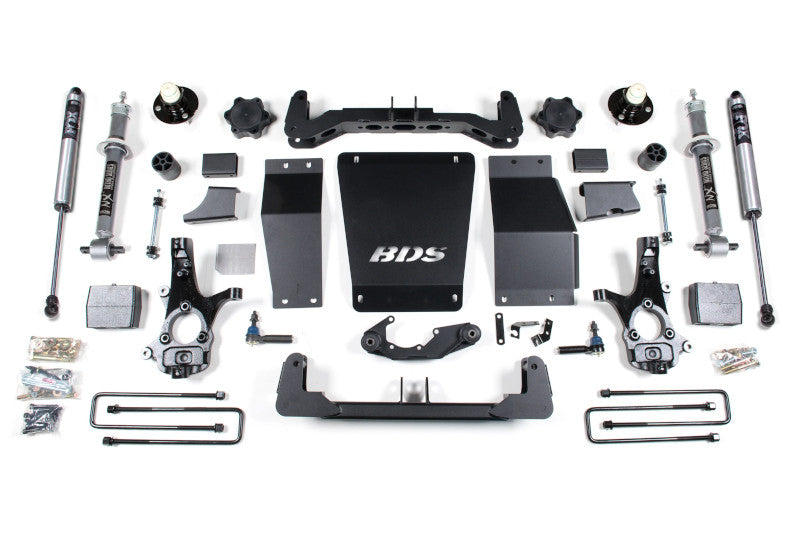

Kit Includes

• 2014 Chevy 1500 5" Rear Block Kit (011505)

• 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped (021661)

• 14-18 GM 1500 - 15-19 GM SUV 1500 6" Frt Box Kit (1of2) (021662)

• 14-18 GM 1500 15-19 GM SUV 6" Frt Box Kit (2of2)  (021663)
• 2014-2018 Chevy 1500 6" NX2 Strut Box Kit (98166)
• Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1 (FOX98224759 x2)
