- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Steel lift blocks with built-in bump stop provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Increase ground clearance on your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Block Kit
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Recommended Tires & Wheels
- 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Vehicle Fitment
2011-2016 Ford F250/F350 Super Duty 4WD - Diesel
Important Notes
- Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems)
- If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
- Although extremely rare, front and/or rear driveline vibration may occur.
- If equipped with rear sway bar, #123009 required.
- U-bolts will not work on dually.

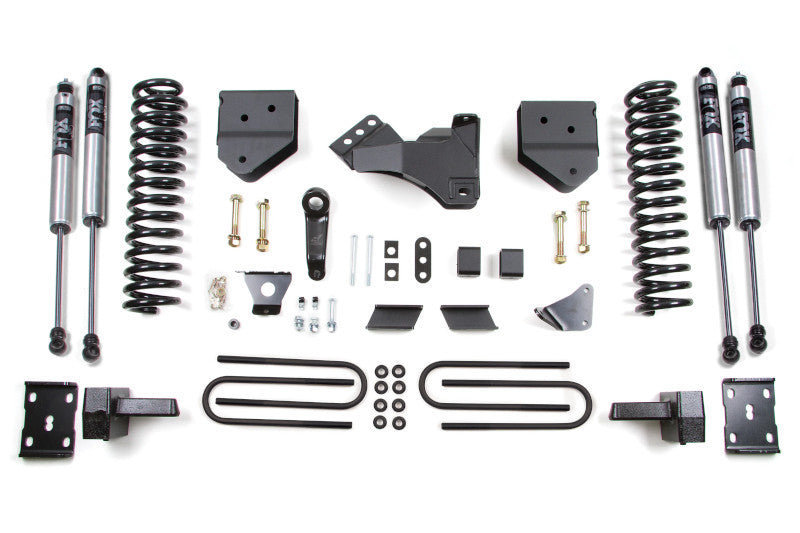

Kit Includes
- 11 Ford F250/350 4in Box kit (013413)
- 2005-up Ford F250/F350 5in Rear Block (013519)
- 2005-2023 Ford F250/F350 Superduty 4" Coil Kit - Diesel (033411)
- Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 (FOX98224700 x2)
- Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224760 x2)
