BDS 546FS 4in Lift Kit w/ FOX Shocks | 2008-2010 F250/F350 4WD Diesel w/o Rear Overload
Click to open expanded view

BDS 546FS 4in Lift Kit w/ FOX Shocks | 2008-2010 F250/F350 4WD Diesel w/o Rear Overload

Manufacturer: BDS Suspension

SKU: BDS546FS
Price
$1,875.60
Out of stock - Call for Availability
Ships From Manufacturer in 1-3 Days
Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Steel lift blocks with built-in bump stop provide level stance from front to rear
  • FOX 2.0 Performance Series shocks for maximum performance on and off-road

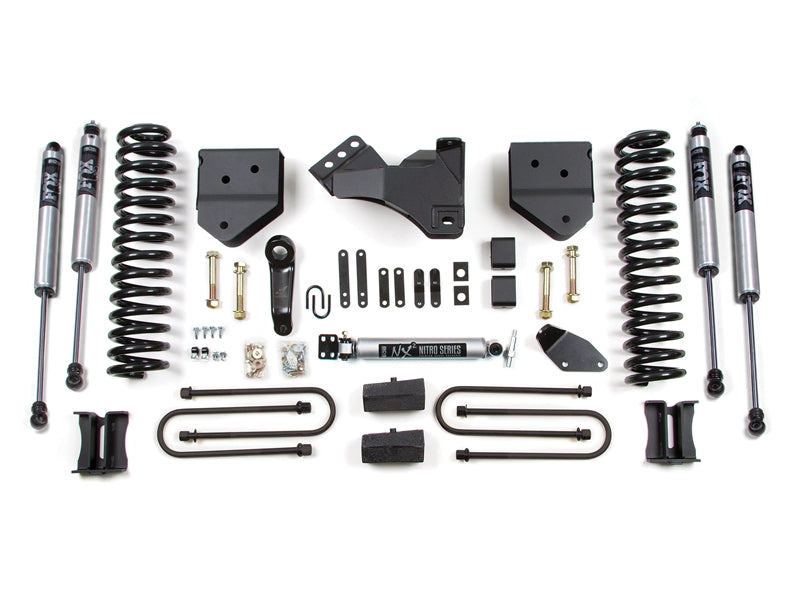

Increase ground clearance on your 2008-2010 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Fitment
  • 2008-2010 Ford F250 / F350 Super Duty 4WD Diesel
Recommended Tires & Wheels
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Rear Lift Option
Block Kit
  • Made for your truck that is manufactured without top-mounted overload springs on the rear leaf springs.
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.
Shocks
FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
Notes
  • If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required
Year Ranges Make Model Series Engine
2008-2010 Ford Super Duty F250/F350
Property Values
Year Ranges 2008-2010
Make Ford
Model Super Duty
Series F250/F350
Engine
