10"-12" Premium Lift kit
Lift kit comes powder-coated gloss black
Comes with billet face plate for front crossmember, along with front and rear chrome reservoir shocks
Note: Kit can be adjusted up to 12". Must add Torsion Keys #52310 (sold separately), Upper Control Arms #52314 (sold separately), and Lift Shims #52361 (sold separately)
2011-2019 GM 2500 / 3500 Trucks
2wd & 4wd Models
Gas & Diesel Models
This kit can be adjusted to 11" or 12". You will need Torsion Keys #52310 (sold separately), to raise up the front. You will also need the Rear Lift Shim Kit #52361 (sold separately), to raise the rear up.
If running this kit at the 12" position, we highly recommend using Upper Control Arms #52314 (sold separately) to help with bump stop clearance issues.
Over-sized tires and heavier wheels can cause premature wear on factory and aftermarket components like ball joints, bushings, tie-rod ends, wheel bearings, idlers arms, drive-lines, etc…You may need to replace / install new components sooner than factory recommendations based on the wheels and tires you choose. Please note that the heavier and wider wheels and tires combined with aggressive driving (off-road and on highways) will cause more wear on ALL moving parts, factory and aftermarket. Especially when vehicle is in 4wd or Auto-4wd / AWD modes.
Spindles and u-bolts are shipped with protective coating on surface. This allows them to be delivered to you without rust. We recommend you clean and paint the parts before you install, to protect against any future rust. Remember, spindles and u-bolts are bare metal. And will rust without paint.
Front Shocks: McGaughy’s #1104
Rear Shocks: McGaughy’s #1105

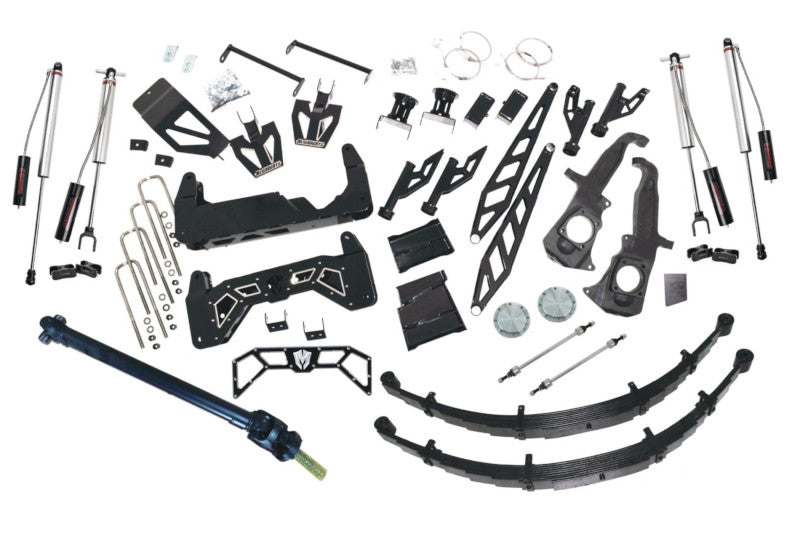

Kit Includes: (2) Spindles, (2) Leaf Spring Packs, (2) Lift Blocks w/ U-bolts & Hardware, (1) Front Crossmember w/Billet Face Plate, (1) Rear Crossmember, (1) Front Drive Line, (1) Skid Plate, (2) Sway Bar End Links, (2) Compression Struts, (2) Lower A-frame Support Rods, (2) Torsion Bar Drops, (2) Differential Drop Brackets, (2) CV Axle Spacers, (1) Weld-in Filler Plate, (4) Front & Rear Bump Stop Drop Brackets, (2) Rear Brake Lines, (2) Rear Compression Strut Retainer Brackets, (2) Front Brake Lines, (2) Front Reservoir Shocks & (2) Rear Reservoir Shocks
| Property | Values |
|---|---|
| Year Ranges | 2011-2019 |
| Make | GM |
| Model | Silverado/Sierra |
| Series | 2500HD/3500HD |
| Engine |
!
