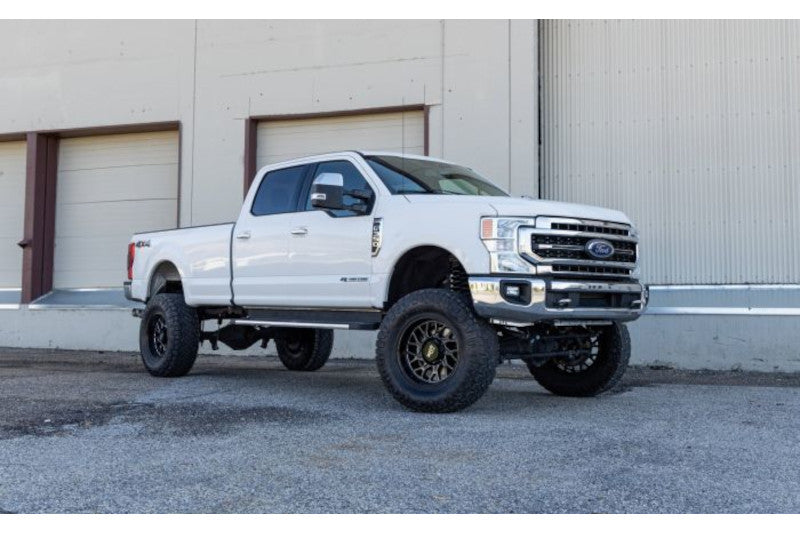

ReadyLift 49-27851 8.5in Lift Kit w/ Falcon Shocks & Radius Arms | 2017-2022 F250/F350 Diesel 4WD

Lift Kit w/ Falcon Shocks & Radius Arm Features:

• Improved driveline
• Max Tire 38x13.50 on 10" wide wheel with +12 offset.
• Bolt-on lift kit
• Improves drive-quality

Enhance Your Rig's Performance and Style

ReadyLIFT, a leader in the lifted suspension market, is proud to announce the release of our new 8.5" Coil Spring “Baller” Lift Kit for 2017-2022 4WD Ford Super Duty F250/F350 trucks equipped with a 6.7L Power Stroke® diesel engine. This lift kit is designed to provide an elevated experience for drivers who are looking to take their vehicles to the next level. This new kit includes our 4-corner 1.1 Falcon shocks and Tubular Radius Arms built to handle everything customers throw at Super Duty trucks. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance!

Improved Ride-Quality For More Enjoyable Experiences

The ReadyLIFT 8.5” Coil Spring Lift Kit delivers superior ride quality, improved ground clearance for off-road adventure, and an impressive stance that draws envious looks wherever you go. This exclusive lift kit includes all necessary components including heavy-duty coil springs, brake line relocation brackets, extended sway bar links, bump stop extensions, radius arms, and more! The all-new big lift kit includes four Falcon 1.1 Monotube shocks designed and tuned specifically for this application.

Note: Single rear wheels only. Diesel trucks only -not compatible with gas engine trucks.

Tire Note:

• 38" Maximum tire diameter
• 37x12.50 for no rub on a 9" wide wheel with 0 offset
• 38x13.50 on 10" wide wheel with +12 offset
• 18" - 37X12.5R18
• 20" - 37X12.5R20
• 22" - 325/60R22

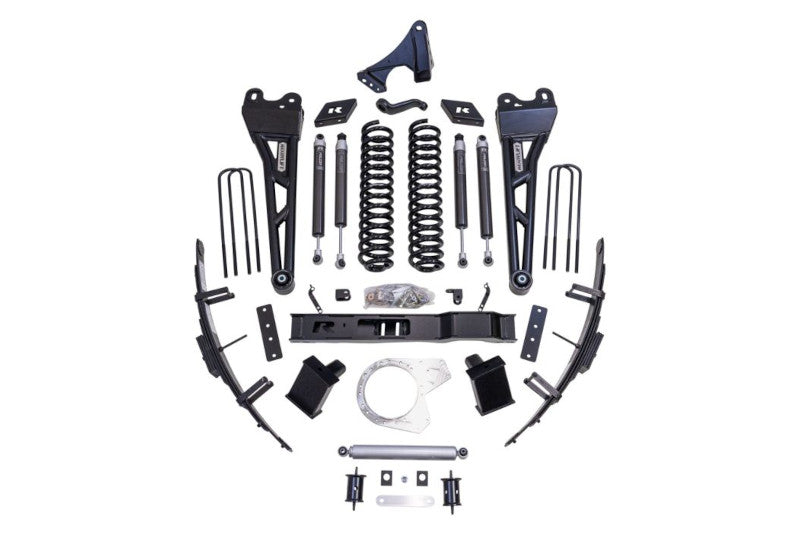

Kit Components:

• Lift Spring
• Drop Pitman
• Track Bar Bracket; and Washer
• Front Bump Stop Extension
• Front Sway Bar Bracket for Driver and Passenger
• Radius Arm for Driver, and Passenger; Radius Arm Crush Sleeve
• Brake Line Bracket for Driver and Passenger
• Steering Stabilizer Bracket Frame, Tie Rod, and Steering Stabilizer Cone Washer
• Rear Sway Bar Bracket
• Rear Block for Driver and Passenger
• U-Bolt, with U-Bolt Hardware Pack
• Front and Rear Shock
• Steering Stabilizer
• Transfer Case Clocking Ring
• Transmission Cross Member
• Carrier Bearing Spacer
• Add-A-Leaf Pack
• Hardware Pack

Vehicle Fitment: 2017-2022 F250/F350 Diesel 4WD

Year Ranges	Make	Model	Series	Engine
2017-2022	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2017-2022
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
