ReadyLift 49-2765 6.5in Lift Kit | 2017-2019 F250/F350 Diesel 4WD

Lift Kit Features:

• Diesel Trucks Only
• Max Tire: 38"
• Includes Bilstein 5100 Series Shocks
• Made in USA
• Great Lift For Great Value
• Made For Trucks With Two-Piece Drive Shafts

Lift Your Front 6.5" To Improve Your Truck's Performance

ReadyLIFT now offers a 6.5" Lift Kit system made to fit 2017-2022 F250 Ford Super Duty 4WD trucks with a one-piece drive shaft. This 6.5" lift kit gives owners an excellent lift kit option that will raise F250 trucks a total of 6.5" in front. This provides for maximum tire clearance and unbeatable off-road performance. Install up to 38" tall off road tires with no problems. This new off road kit delivers uncompromised ride and handling performance! The 49-2765 6.5" Lift Kit includes custom wound coil springs engineered to provide an incredibly great ride while also enhancing off-road driving performance. The kit includes radius arm drop brackets allowing the use of factory radius arms and correcting caster in the process. To lift the rear we include fabricated rear lift blocks with off-set pin design to relocate the axle bringing the rear up level with the front while providing a factory-like ride. Other great components to this kit include a drop pitman arm, track bar bracket, sway bar end links, drive shaft spacer, and all hardware

Made To Boost Your Rigs Features and Benefits

Maximum wheel and tire size 22 x 12 with +12 offset with 38x13.50" tire 6.5" of front lift for additional ground clearance and ability to clear up to 38" tires. Radius arm drop brackets allow you to use your factory radius arms and corrects caster. Custom wound coil springs for maximum off road and on road performance. 6.5" lift rear blocks provides comfortable lift while maintaining a quality ride. Includes extended sway bar end links, bump stop extensions, alignment cams, drop pitman arm and extended brake line brackets. Increased Off Road Ability with An Incredibly Great Ride!

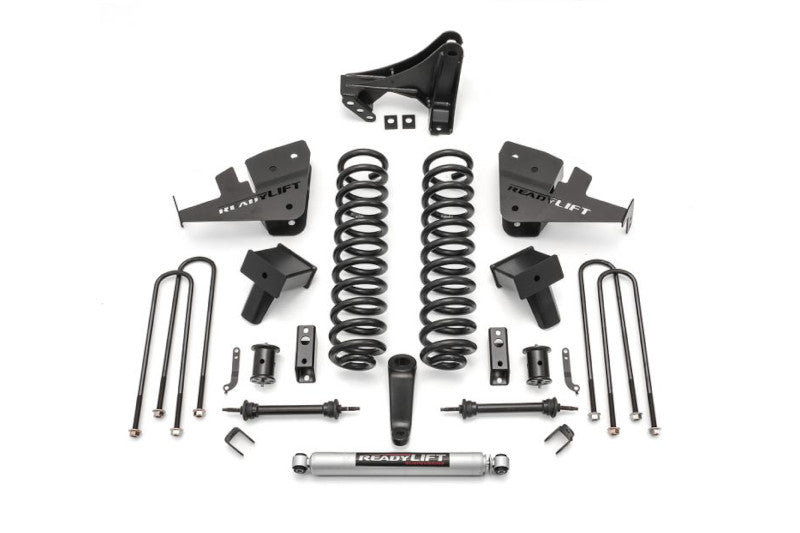

Kit Components:

• (2) performance coil springs
• (2) CNC machined billet aluminum lower spacers
• (1) drop pitman arm
• (1) oem style cast iron front track bar bracket
• (2) radius arm drop brackets
• (2) bump stop extensions
• (2) extended length front sway bar end links
• (2) OEM style cast iron rear lift blocks
• Longer u-bolts and hardware

Tire Fitment:

• 38" Maximum tire diameter
• 37x12.50 for no rub on a 9" wide wheel with 0 offset
• 38x13.50 on 10" wide wheel with +12 offset
• 18" - 37X12.5R18
• 20" - 37X12.5R20
• 22" - 325/60R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT

Note: Longer shocks are required when using the this kit. ReadyLIFT SST3000 shock are available and sold separately

Note: For use with 1-piece drive shafts only

Note: Diesel engines only

Note: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

Vehicle Fitment: 2017-2019 Ford F250/F350 Super Duty Diesel 4WD

Year Ranges	Make	Model	Series	Engine
2017-2019	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2017-2019
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
