ReadyLift 49-23421 4in Coil Spring Lift Kit w/ Falcon Shocks & Radius Arms | 2023 F250/F350 4WD

Coil Spring Lift Kit Features:

• Fits 2023-UP Ford Super Duty Power Stroke 4WD
• 4" Coil Spring Lift Kit with (4) Monotube Falcon 1.1 Shocks
• Bolt-on lift kit - no structural modifications required
• Diesel trucks with rear single-wheel only.
• Allows for up to 37" tall tires on 9" wide wheels with +18 offset

Quick And Easy Installation

The all-new Radius Arms are designed to correct the suspension geometry on lifted models. These new radius arms are heavy duty and are built to handle the use and abuse demanded out of Super Duty trucks. The new radius arms hold up to the abuse and surpass the factory radius arms and support gussets. The arms are formed inward, allowing for additional tire clearance, and providing the ability to install oversized tires. The direct bolt-on design promotes quick and easy installation.

Improve Your Ride Performance and Power

With the help of Falcon steering dampers in the 49-23421, ReadyLIFT’s new Dual Steering Stabilizer provides superior truck stability which is crucial for any solid front axle vehicle equipped with oversized-sized tires. Falcon steering stabilizers allow for more confident handling over the road and in challenging terrain. They reduce bump steer and improve steering feed contributing to overall truck comfort and security thanks to the increased truck maneuverability and control. This optimum lift height allows for up to 37" tall tires. The coil spring kit delivers a great ride and handling performance! The key ingredients to improving Super Duty ride and handling are the new, specially engineered coil springs teamed with Falcon 1.1 shocks and a track bar relocation bracket! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road.

Note: Tremor versions will not gain the full 4 inches over stock ride height. Not recommended for 2WD or gas trucks. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT. Currently does not have mounting hardware to work with smart hitch and auto headlight adjuster equipped vehicles.

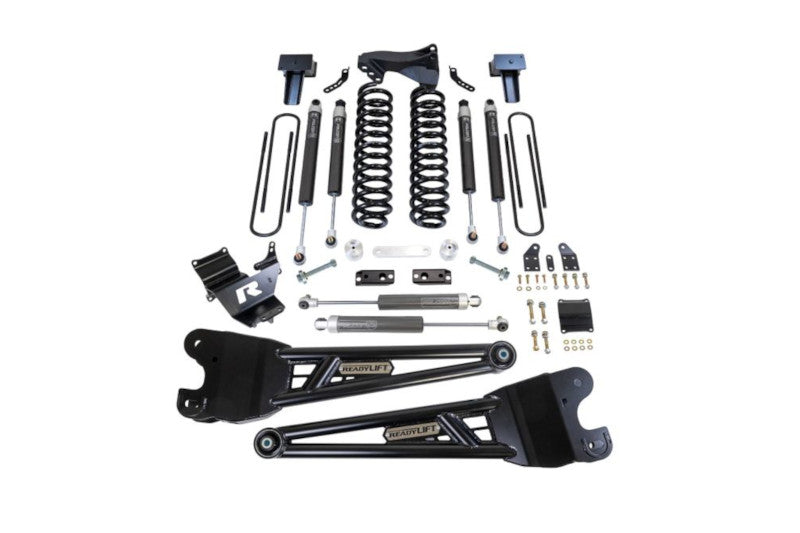

Kit Components:

• 4" Lift Springs
• Falcon 1.1 Monotube Front and Rear Shocks
• Track Bar Relocation Brackets
• Radius Arm
• Dual Steering Stabilizers
• Sway Bar Drops
• Bump Stop Extensions
• Carrier Bearing Drop
• Front Brake Line Brackets
• Fabricated Rear Lift Blocks
• Hardware Pack

Tire Fitment Note:

• Recommended Tire Size - 37" - 12.5"
• Recommended Wheel - 17" and up x 9" wide, +25 offset / 6" backspacing (minor trimming of the front valance may be necessary)

Vehicle Fitment: 2023 Ford F250, F350 Super Duty 4WD

Year Ranges	Make	Model	Series	Engine
	Ford	Super Duty	F250/F350

Property	Values
Year Ranges
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
