BDS 1666H 4in 4-Link Lift Kit w/ NX2 Shocks | 2019-2024 Ram 3500 4WD Diesel
Click to open expanded view

BDS 1666H 4in 4-Link Lift Kit w/ NX2 Shocks | 2019-2024 Ram 3500 4WD Diesel

Manufacturer: BDS Suspension

SKU: BDS1666H
Price
$2,312.55
Out of stock - Call for Availability
Features & Benefits
  • Rear Lift Option: Without Factory Rear Overload Leaf
  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas shocks to improved ride and offroad performance

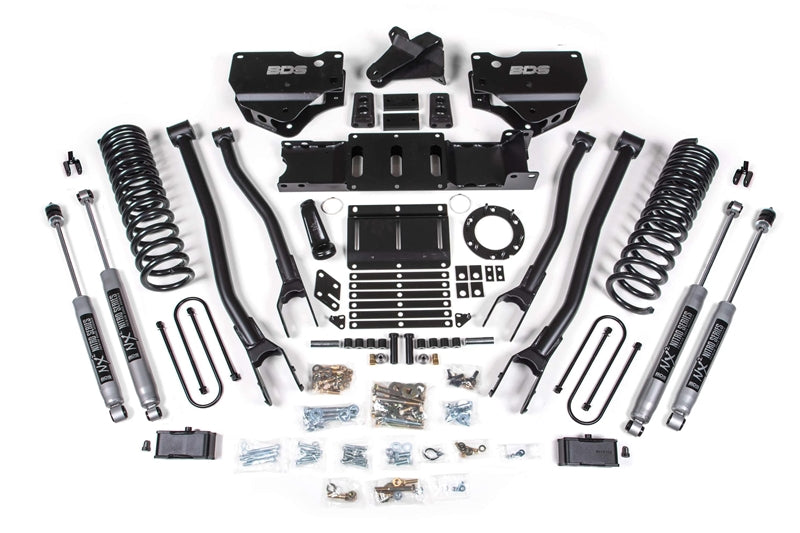

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Fitment
  • 2019-2024 Dodge Ram 3500 4WD Diesel
Recommended Tires & Wheels
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
Rear Lift Option

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Indexing Ring
6 Bolt Indexing Ring
  • Kits come standard with 6-Bolt indexing ring kit.
Shocks
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
Notes
  • T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
  • Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
  • Does not fit Dually Models with 8-bolt Transmissions (Aisin)
Year Ranges Make Model Series Engine
2019-2024 Ram 3500
Property Values
Year Ranges 2019-2024
Make Ram
Model
Series 3500
Engine
