BDS 1658H 4in Radius Arm Lift Kit w/ NX2 Shocks | 2019-2024 Ram 3500 4WD w/o Rear Overload
Click to open expanded view

BDS 1658H 4in Radius Arm Lift Kit w/ NX2 Shocks | 2019-2024 Ram 3500 4WD w/o Rear Overload

Manufacturer: BDS Suspension

SKU: BDS1658H
Price
$2,122.55
Out of stock - Call for Availability
Ships From Manufacturer in 1-3 Days
Features & Benefits
  • Rear Lift: Made for a RAM without factory Rear Overload Leaf.
  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas shocks to improved ride and offroad performance

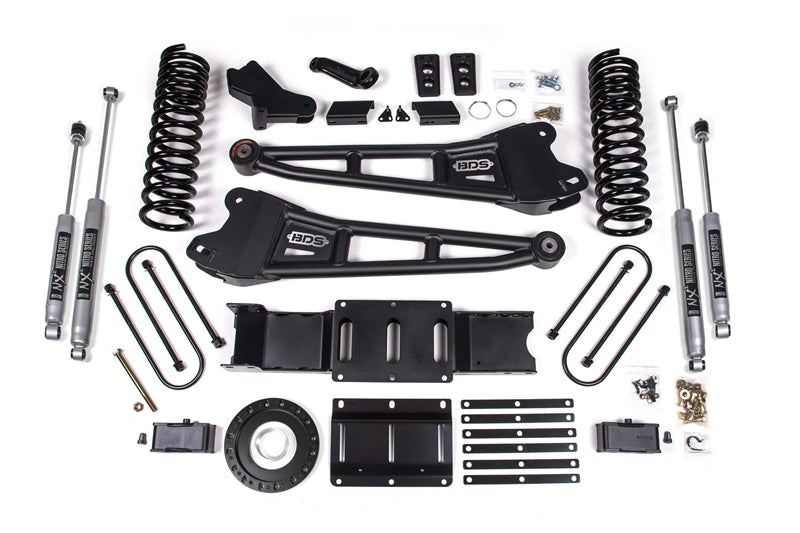

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Fitment
  • 2019-2024 Dodge Ram 3500 4WD Diesel
Recommended Tires & Wheels
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 17 x 9 and 5.625 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
Indexing Rings
8 Bolt Indexing Ring
  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
Shocks
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
Notes
  • T-case indexing ring available for 6-bolt and 8-bolt equipped models, check vehicle before ordering
  • Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
  • Does not fit Dually Models with 8-bolt Transmissions (Aisin)
Year Ranges Make Model Series Engine
2019-2024 Ram 3500
Property Values
Year Ranges 2019-2024
Make Ram
Model
Series 3500
Engine
