BDS 1636FS 4in Lift Kit w/ FOX 2.0 Shocks | 2014-2018 Ram 2500 Power Wagon 4WD

Lift Kit Features:

• Heavy-Duty radius arm drop brackets help maintain proper suspension geometry
• Front high strength progressive rate coil springs for off-road terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Maintains and handles performance
• FOX performance series IFP gas shocks to improved ride and off-road performance

Fox 2.0 Shocks Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Boost Your Off-Road Performance

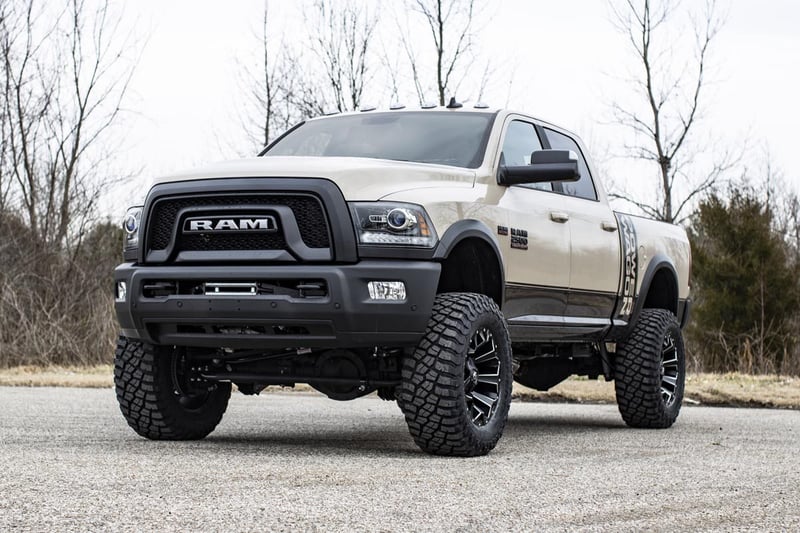

Take your 2014-2018 RAM 2500 Power Wagon to the next level with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes specific Pro-Ride coil springs, heavy-duty radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

Improve Ride-Quality and Comfort

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. A pair of full-length, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind. To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Important Notes: Requires exhaust modification to clear front driveshaft at full suspension droop, steps outlined in instructions.

Important Notes: Compatible with factory rear power hop damper.

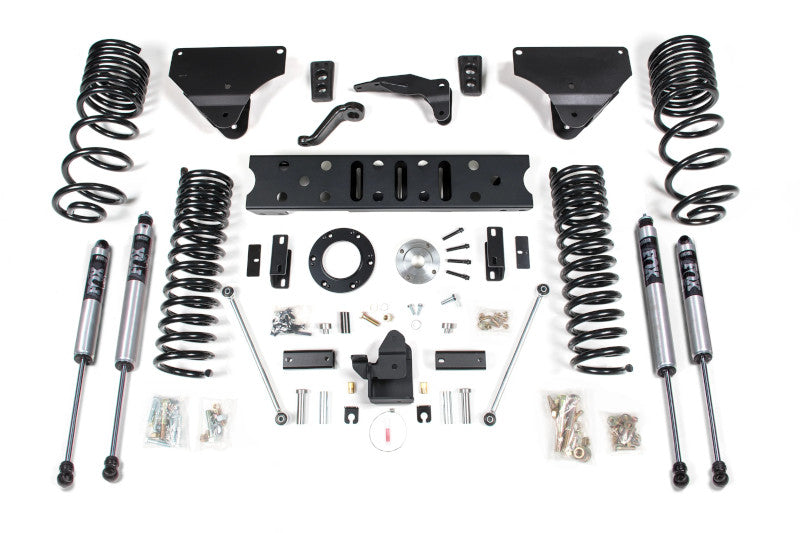

Kit Components:

• 1x - 14-up Ram Power Wagon Rear Box Kit (012256)
• 1x - 14-up Ram Power Wagon Front Box Kit (012402)
• 1x - 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4" Diesel - 5.5" Gas (032401)
• 1x - Ram T-Case Index - Gas - 6 Bolt (122616)
• 2x - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 (FOX98224700)
• 2x - Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1 (FOX98224753)

Specs:

Front Lift: Coil Spring

Rear Lift: Coil Springs

Shocks Included: Yes

Front Lift Height: 4"

Rear Lift Height: 2.5"

Wheel and Tire Note:

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Vehicle Fitment: 2014-2018 Dodge Ram 2500 Power Wagon 4WD

Year Ranges	Make	Model	Series	Engine
2014-2018	Ram		2500

Property	Values
Year Ranges	2014-2018
Make	Ram
Model
Series	2500
Engine
