BDS 1627H 6in Lift Kit w/ NX2 Nitro Shocks | 2014-2018 Ram 2500 4WD Air Ride Diesel

Features & Benefits

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

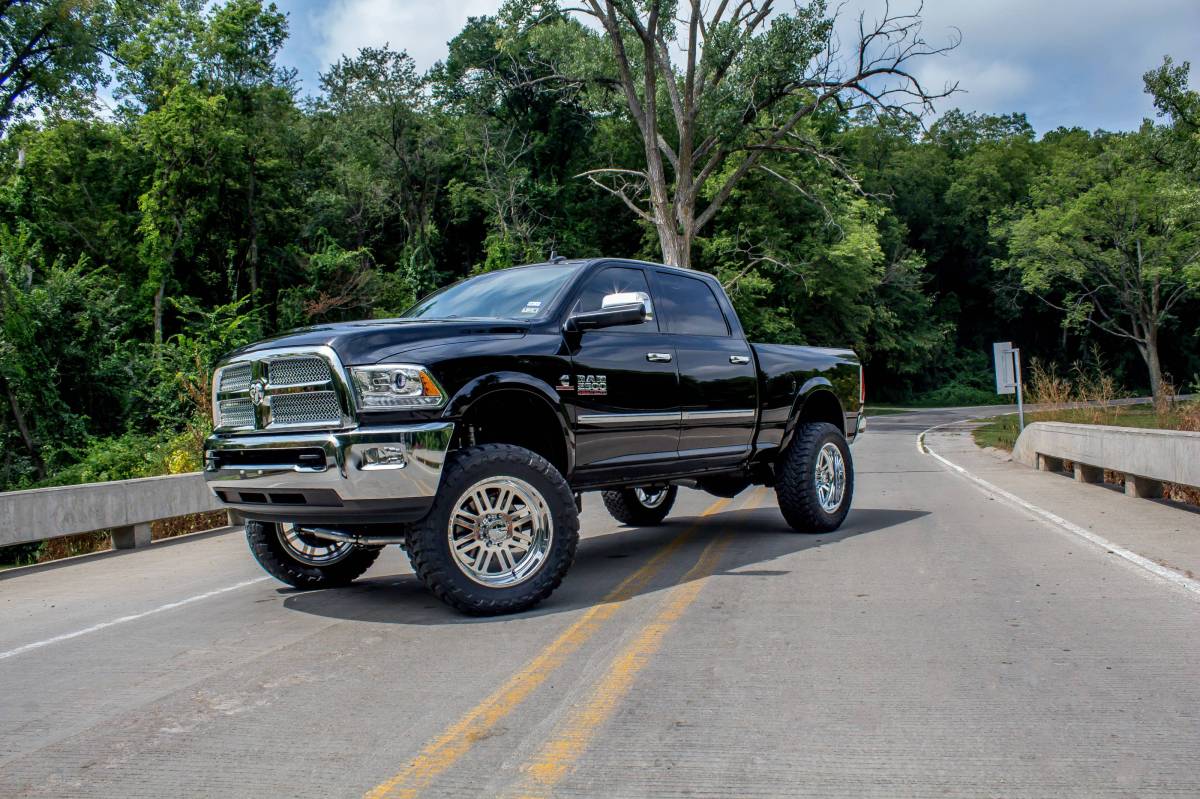

Take your rear air ride equipped 2014-2018 RAM 2500 diesel powered truck to the next level with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. BDS also supplies new air ride leveling sensor brackets to re-position the ride height sensors allowing it to perform just like it does at factory ride height and maintain full air bag range of motion.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Shock Option

NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Recommended Tires & Wheels

• 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Important Notes

Vehicle Fitment

2014-2018 Dodge Ram 2500 4WD Diesel with Air Ride Suspension

Kit Includes

• 14-18 Ram 2500 5" Rear Air Ride Box Kit (012529)
• 2013 Ram 3500 6" Front Box Kit (012610)
• 2013-2023 Ram 3500 / 2014-2023 Ram 2500 6" Coils - Diesel (032602)
• 2013-2018 3500/2014-2018 2500 Ram T-Case Index- 6 Bolt (122623)
• NX2 Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (85752 x2)

• NX2 Shock- 26.2 x 15.7 x 2-3/8 - Special/EB1 (85757 x2)
