BDS 1593FPE 6in Radius Arm Lift Kit w/ FOX 2.5 Coilover Conversion & Factory 3in Rear Blocks | 2011-2016 F250/F350 4WD Diesel

Lift Kit Features:

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary Fox 2.0 shock for max performance
• Provides smooth rides through harsh terrain
• Maximizes ground clearance
• Maintains proper steering angles for improving your handling
• Levels stance
• Resists corrosion

Trail Through The Rough Off-Road Terrain With Ease

Built to outperform, upgrade your 2011-2016 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit with FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned secondary FOX 2.0 shocks.

Improve Drive Quality and Performance

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Specs:

• Front Lift: Coilover
• Rear Lift: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6"
• Rear Lift Height:

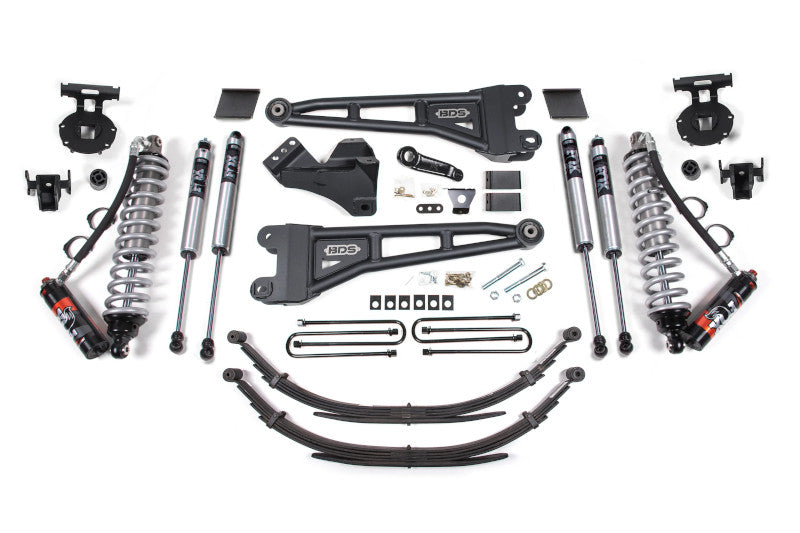

Kit Components:

• 2x - Ford F250/350 6in Rear Spring (003629)
• 1x - 2011-2016 Ford F250/F350 Rear Box Kit -- 3-1/2" Factory Block (013609)
• 1x - 2011-2016 Ford F250/F350 6" Radius Arm Front Box Kit (013614)
• 1x - 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (123251)
• 1x - 2005-2016 Ford F250/F350 Coilover Mounting Kit (123612)
• 1x - Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 6" Lift, DSC (FOX88406428)
• 2x - Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (FOX98224758)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224760)

Important Note: If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.

Important Note: Although extremely rare, front driveline vibration may occur.

Important Note: If equipped with a rear sway bar, #123009 is required.

Important Note: U-bolts will not work on dually.

Tires and Wheel Note: 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Vehicle Fitment: 2011-2016 Ford F250/F350 Super Duty 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2011-2016	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2011-2016
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
