BDS 1581FPE 6 inch Radius Arm Lift Kit with FOX 2.5 Coilover Conversion & 5 inch Block with 3 Leaf Main | 2017-2019 Ford F250/F350 6.7L Powerstroke 4WD

Lift Kit Features:

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Provides smooth drive quality over rough terrain
• Maintain proper steering angles for improved handling
• Heavy-duty tubular steel radius arms that maximizes ground clearance
• Levels out stance
• Resists Corrosion

Improve Your Off-Road Drive-Quality and Performance

Raise the bar on your 2017-2019 Ford F250 and F350 Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

Feel The Power After Installing The Fox 2.5 Coilover Conversion Shocks

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Tire & Wheel Note:

• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 18 x 9 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Specs:

• Front Lift: Coilover
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 6"
• Rear Lift Height: 5"

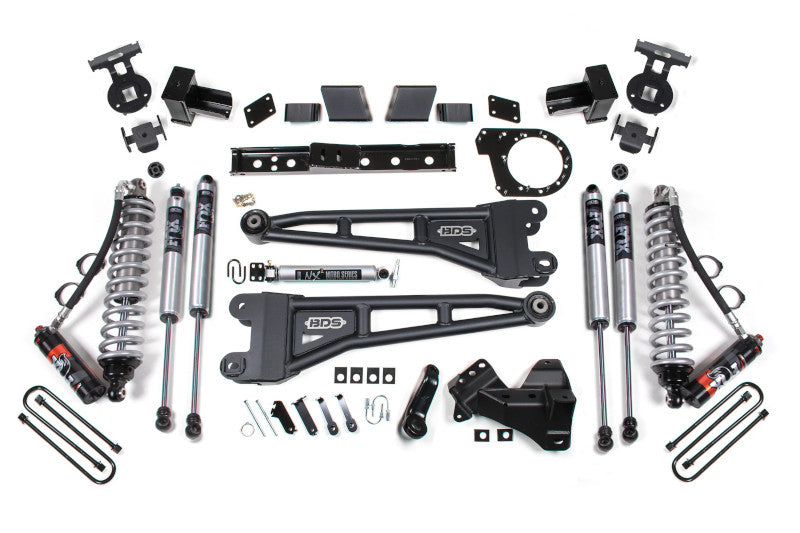

Kit Components:

• 1x - 2020-2022 F250/F350 6" RA Front Box Suspension System (013603)
• 1x - 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (123251)
• 1x - 2017-2019 Super Duty Rear 6" Block Kit (013607)
• 1x - 2017-2022 Super Duty Coil-over Mount Kit (123613)
• 1x - 2017-2022 SD T-Case Indexing Kit- DSL (123605)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 1x - Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck PES, R/R 6" Lift, DSC (FOX88406428)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718)
• 2x - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (FOX98224750)

Note: If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (pn# 123402)

Note: 38 x 13.50 tires may require minor trimming.

Note: Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.

Note: The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

Note: If your truck is equipped with a factory rear sway bar add rear sway bar links (pn# 123808)

Note: The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Vehicle Fitment: 2017-2019 Ford F350 Super Duty 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2017-2019	Ford	Super Duty	F250/F350	6.7L Powerstroke

Property	Values
Year Ranges	2017-2019
Make	Ford
Model	Super Duty
Series	F250/F350
Engine	6.7L Powerstroke
