BDS 1580FS 6in Radius Arm Lift Kit w/ FOX 2.0 Shocks & 5in Block w/ 2 Leaf Main | 2017-2019 F250/F350 4WD Diesel

Lift Kit Features:

• Easy, 100% Bolt-on installation
• Provides smooth drive quality over rough terrain
• Maintain proper steering angles for improved handling
• Heavy-duty tubular steel radius arms that maximizes ground clearance
• Levels out stance
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Fox 2.0 Shocks Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Improve Your Off-Road Drive-Quality and Performance

Take your 2017-2019 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

Feel The Power After Installing These Heavy-Duty Components

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Tire & Wheel Note:

• 38 x 13.5 with 17 x 9 and 5 in. Backspace
• 38 x 13.5 with 18 x 9 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Specs:

• Front Lift: Coil Springs
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 6"
• Rear Lift Height: 5"

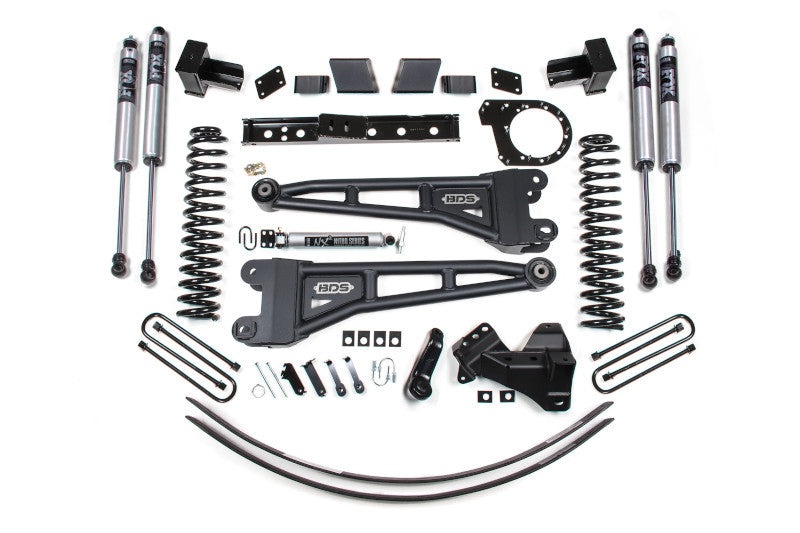

Kit Components:

• 1x - 2020-2022 F250/F350 6" RA Front Box Suspension System (013603)
• 1x - 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (123251)
• 1x - 2017-2019 Super Duty Rear 6" Block Kit (013607)
• 1x - 2017-2019 Ford Super Duty - Add-A-Leaf Kit (013219)
• 1x - 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit (033611)
• 1x - 2017-2022 SD T-Case Indexing Kit- DSL (123605)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718)
• 2x - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (FOX98224750)

Note: If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (pn# 123402)

Note: 38 x 13.50 tires may require minor trimming.

Note: Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.

Note: The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

Note: If your truck is equipped with a factory rear sway bar add rear sway bar links (pn# 123808)

Note: The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Vehicle Fitment: 2017-2019 Ford F350 Super Duty 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2017-2019	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2017-2019
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
