BDS 1575FS 4in Radius Arm Lift Kit w/ FOX 2.0 Shocks | 2017-2019 F350 DRW 4WD Diesel

Lift Kit Features:

• Fox 2.5 coilover mounts in factory coil bucket location
• Provides smooth drive quality over rough terrain
• Heavy-duty tubular steel radius arms that maximizes ground clearance
• Levels out stance
• Corrosion resistant
• Improves handling

Fox 2.0 Performance Shocks Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Improve Your Off-Road Drive-Quality and Performance

Improve the ride on your 2017-2019 Ford F350 Dually "DRW" Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 37" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

Feel The Power After Installing These Heavy-Duty Components

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Tire & Wheel Note:

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 18 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Specs:

• Front Lift: Coil Spring
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 4"
• Rear Lift Height: 3"

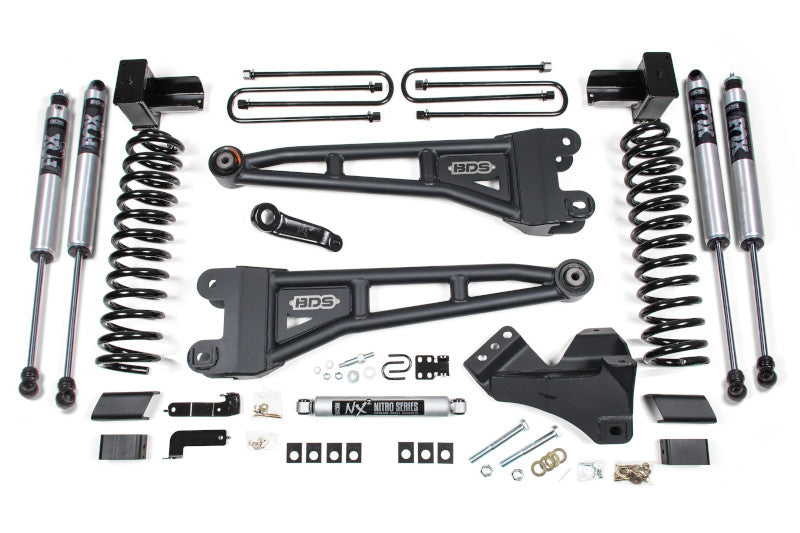

Kit Components:

• 1x - 2017-2023 Super Duty 4" Front Box Kit (013414)
• 1x - 2017-2020 F350 Dually 5" Block Kit (013526)
• 1x - 2005-2023 Ford F250/F350 Superduty 4" Coil Kit - Diesel (033411)
• 1x - 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (123251)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 2x - Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1 (FOX98224700)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718)

Note: Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.

Note: If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)

Note: Torque wrench capable of 405 ft-lbs required.

Note: 37 x 12.50 tires may require minor trimming.

Vehicle Fitment: 2017-2019 Ford F350 Super Duty 4WD Diesel
