BDS 1574FS 7in 4-Link Lift Kit w/ FOX 2.0 Shocks | 2020-2022 F250/F350 4WD Diesel

Lift Kit Features:

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Improves handling, stability and strength
• Levels out stance
• Maintain proper steering angles for improved handling
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Fox 2.0 Performance Series Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Add Larger Tires To Improve Rig's Off-Road Performance

Take your dual rear wheel "DRW" Ford F350 Super Duty diesel truck to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually Ford truck up right with clearance for up to 38" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

Improves Handling Through Rough Off-Road Terrain

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Tire & Wheel Note:

• 38 x 13.5 with 20 x 9 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Specs:

• Front Lift: Coil Spring
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 6"
• Rear Lift Height: 5"

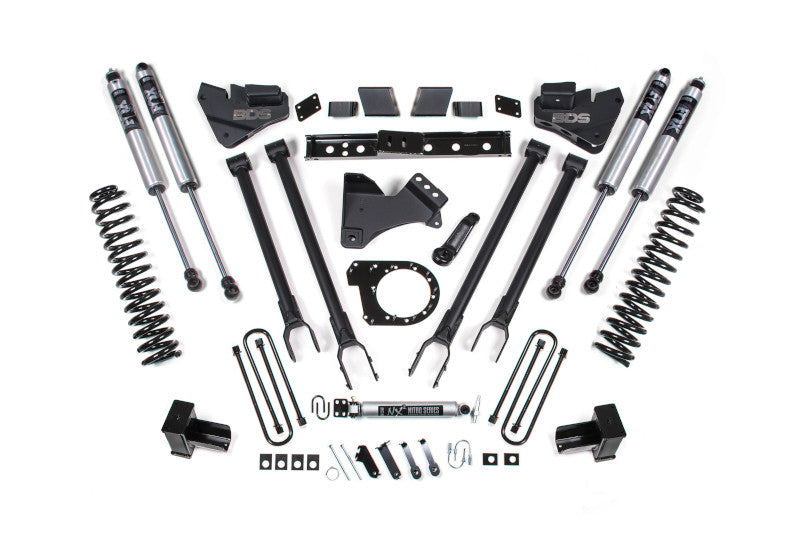

Kit Components:

• 1x - 2017-2022 Ford F-250 / F-350 6" 4-Link Box Kit (013604)
• 1x - 2017-2020 F350 Dually 5" Block Kit (013526)
• 1x - 2017-2022 Super Duty 4-Link Box Kit (013601)
• 1x - 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit (033611)
• 1x - 2017-2022 SD T-Case Indexing Kit- DSL (123605)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718)
• 2x - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (FOX98224750)

Notes: Dually Models Only.

Notes: The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

Notes: If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).

Notes: 38 x 13.50 tires may require minor trimming.

Notes: The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Vehicle Fitment: 2020-2022 Ford F350 Super Duty 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2020-2022	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2020-2022
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
