BDS 1573H 7in Radius Arm Lift Kit w/ NX2 Nitro Shocks | 2020-2022 F350 4WD Diesel

Lift Kit Features:

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Improves handling, stability and strength
• Maximizes ground clearance
• Levels out stance
• Maintain proper steering angles for improved handling
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

NX2 Nitro Shocks Features:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Add Larger Tires To Improve Rig's Off-Road Performance

Take your Ford F350 Dually "DRW" Super Duty diesel truck to the next level with this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

Improves Handling Through Rough Off-Road Terrain

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation. At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Tire & Wheel Note:

• 38 x 13.5 with 20 x 9 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Specs:

• Front Lift: Coil Spring
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 6"
• Rear Lift Height: 5"

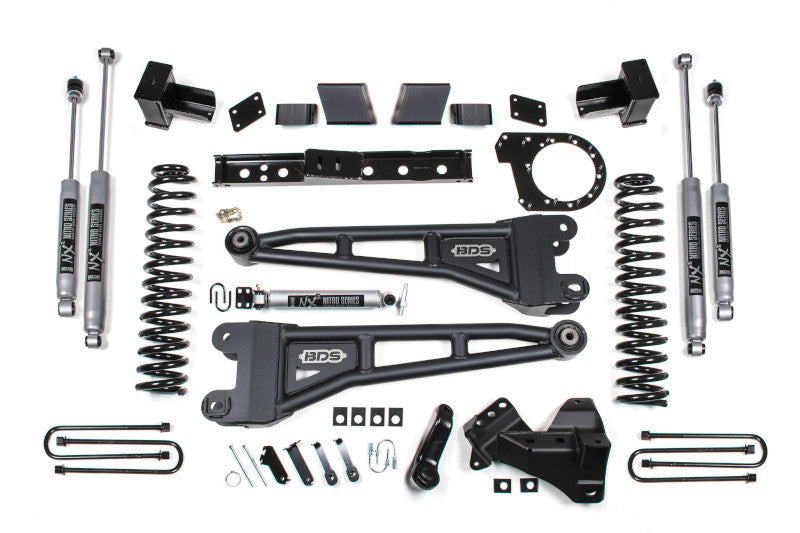

Kit Components:

• 1x - 2020-2022 F250/F350 6" RA Front Box Suspension System (013603)
• 1x - 2005-2022 Ford F250/F350 Radius Arm Kit, Pair (123251)
• 1x - 2017-2020 F350 Dually 5" Block Kit (013526)
• 1x - 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit (033611)
• 1x - 2017-2022 SD T-Case Indexing Kit- DSL (123605)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 2x - Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (BDS85750)
• 2x - Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1 (BDS85718)

Notes: Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.

Notes: Dually Models Only.

Notes: The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

Notes: If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).

Notes: 38 x 13.50 tires may require minor trimming.

Notes: The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.

Vehicle Fitment: 2020-2022 Ford F350 Super Duty 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2020-2022	Ford

Property	Values
Year Ranges	2020-2022
Make	Ford
Model
Series
Engine
