BDS 1571FS 7in 4-Link Lift Kit w/ FOX 2.0 Shocks | 2020-2022 F250/F350 4WD Diesel

Lift Kit Features:

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Improves handling, and stability
• Levels out stance

Fox 2.0 Performance Series Shocks Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Add Larger Tires And Improve Rig Off-Road Performance

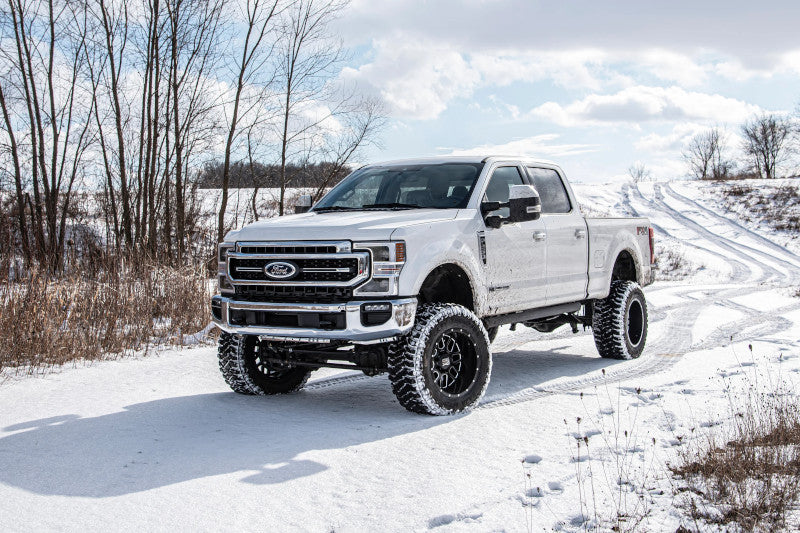

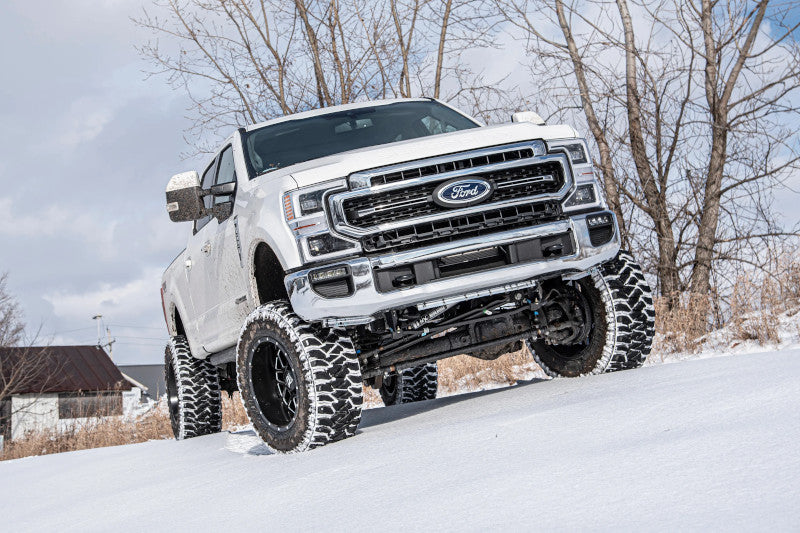

Take your Ford Super Duty diesel truck to the next level with this 7-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

Heavy-Duty Durability For Harsh Terrain

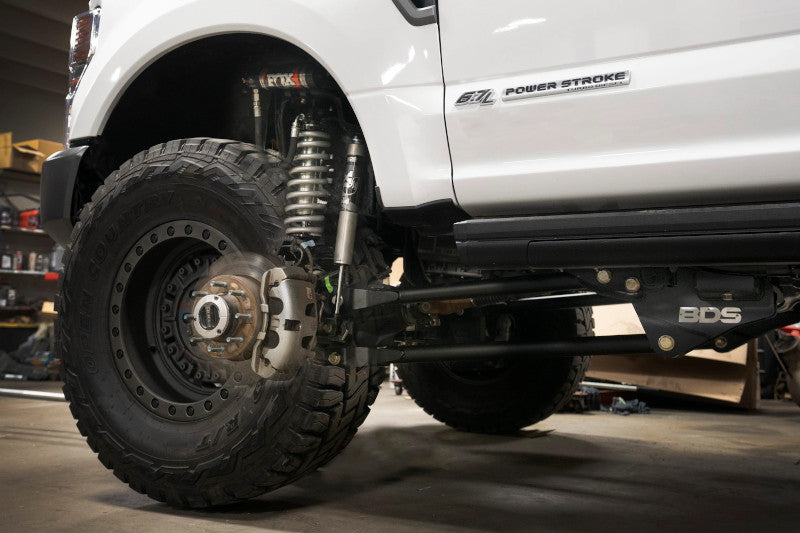

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Tire & Wheel Note:

• 38 x 13.5 with 17 x 10 and 5 in. Backspace
• 38 x 13.5 with 20 x 9 and 5 in. Backspace
• 38 x 13.5 with 20 x 10 and 5 in. Backspace

Specs:

• Front Lift: Coil Spring
• Rear Lift: Block
• Shocks Included: Yes
• Front Lift Height: 7"
• Rear Lift Height: 6"

Kit Components:

• 1x - 2017-2022 Ford F-250 / F-350 6" 4-Link Box Kit (013604)
• 1x - 2020-2022 F250/F350 6.25in Rear Box Suspension System (013606)
• 1x - 2017-2022 Super Duty 4-Link Box Kit (013601)
• 1x - 2005-2022 Ford F250/F350 6" (Diesel) Coil Kit (033611)
• 1x - 2017-2022 SD T-Case Indexing Kit- DSL (123605)
• 1x - 2017-2023 F250/F350 Single Stabilizer (85431)
• 2x - Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1 (FOX98224750)
• 2x - Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1 (FOX98224718)

Notes: Ford recommends the replacement of the pitman arm nut after each time it has been removed.

Notes: Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.

Notes: If your truck is equipped with a factory rear sway bar add: BDS123808

Notes: If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.

Notes: Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.

Notes: Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.

Notes: The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing it. The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.

Notes: Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required.

Notes: Installation requires a torque wrench capable of 405 ft-lbs.

Notes: Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)

Vehicle Fitment: 2020-2022 Ford F250/F350 Super Duty 4WD Diesel

Year Ranges	Make	Model	Series	Engine
2020-2022	Ford	Super Duty	F250/F350

Property	Values
Year Ranges	2020-2022
Make	Ford
Model	Super Duty
Series	F250/F350
Engine
