BDS 149H 7in Lift Kit w/ NX2 Nitro Series Shocks - Carrier Above Crossmember | 01-10 Silverado/Sierra 2500HD 2WD
Click to open expanded view

BDS 149H 7in Lift Kit w/ NX2 Nitro Series Shocks - Carrier Above Crossmember | 01-10 Silverado/Sierra 2500HD 2WD

Manufacturer: BDS Suspension

SKU: BDS149H
Price
$1,948.55
Out of stock - Call for Availability
Lift Kit Features:
  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Choice of NX2 or FOX 2.0 gas shocks for improved performance

NX2 Nitro Series:
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Improve Rig's Stance and Performance


Designed to improve stance, performance, and capability, the BDS 6-inch lift kit for the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 2WD is a must have upgrade. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with heavy duty skid plates built for offroad protection.


Improves Steering and Drive Quality

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.


Note: Special tool required to unload/load the torsion bars.

Note: The 2WD HD was produced with two different styles of carrier bearing crossmembers. If the carrier bearing is mounted above the crossmember, use 121611. If the carrier bearing is mounted below the crossmember, use 121612.

Specs:

  • Front Lift Method : Cross-Member
  • Rear Lift Method : Block
  • Shocks Included : Yes
  • Front Lift Height : 7"
  • Rear Lift Height : 5"

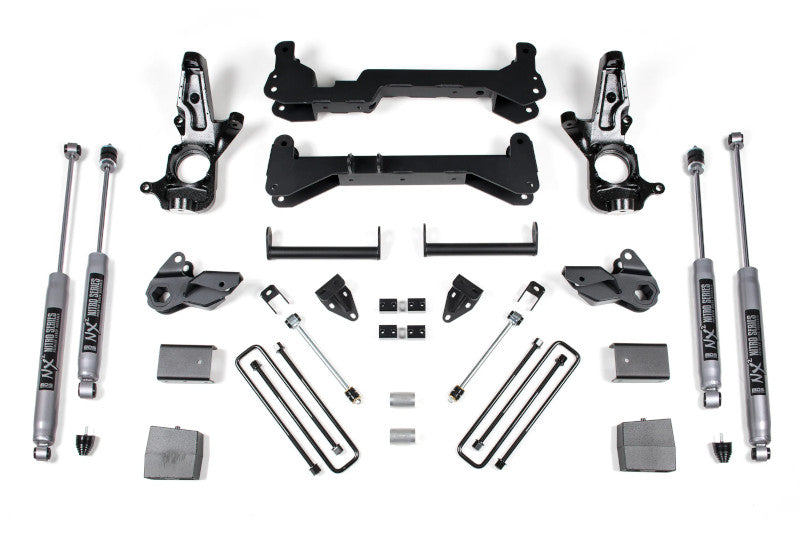

Kit Includes:
  • 1x - GM 3/4 ton HD 5in Rear Box Kit (011507)
  • 1x - 01-10 GM HD (021620)
  • 1x - Box Kit (021627)
  • 1x - Box Kit (021628)
  • 1x - Carrier Bearing Drop (121611)
  • 2x - Shock- 22.20 x 13.35 x 2 - S50/EB1 (85606)
  • 2x - Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (85761)



Recommended Tires and Wheels:

  • 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 5.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Vehicle Fitment:
  • 2001-2010 Chevrolet Silverado 2500HD 2WD
  • 2001-2010 GMC Sierra 2500HD 2WD
Year Ranges Make Model Series Engine
GM Silverado/Sierra 2500HD
Property Values
Year Ranges
Make GM
Model Silverado/Sierra
Series 2500HD
Engine
