ICON K78352T 0-2in Stage 2 Suspension System with Tubular UCAs | 2020-2022 Silverado/Sierra 2500HD/3500HD 6.6L

2020-2022 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System - Tubular UCAs Features:

• 0-2" adjustable lift height over stock
• Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and rear shocks for superior shock damping and control
• Improved ride quality over stock with no change in towing capacity
• Wheel travel increase of 2" over stock
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant anodized aluminum shock bodies

The 2020-2022 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System Offers Improved Ride Quality Over Stock

A comfortable ride does not happen without having quality suspension components. For the 2020-2022 GM 6.6L Duramax 2500HD / 3500HD, the best way to take your suspension performance to the next level is with the 2020-2022 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System. It includes ICON's V.S. 2.5 Aluminum Series remote reservoir front and rear shocks and tubular Delta Joint upper control arms. There is no better way to optimize the comfortability of your ride through added suspension strength, improved alignment, a taller ride height, and component longevity.

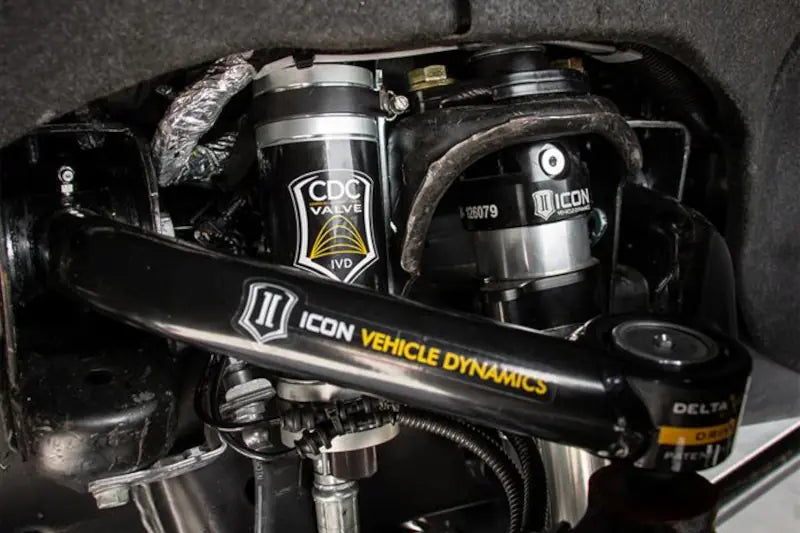

UCAs w/ Patented Delta Joint

The 2020-2022 GM 6.6L Duramax 2500HD / 3500HD ICON 0-2" Stage 2 Suspension System includes the tubular version of ICON's Delta Joint UCAs. The featured delta joint is much stronger and more angular than the stock uniballs. Each delta joint features a zinc-plated housing to provide additional corrosion resistance and improve the durability for more intensive applications. The grease seal on each delta joint is included to help repel harmful elements from getting into the inner workings of the joint for more free movement and a noise-free operation. When combined with the V.S. 2.5 Aluminum Series remote reservoir front and rear shocks, your suspension will be well equipped to hit streets or the trails.

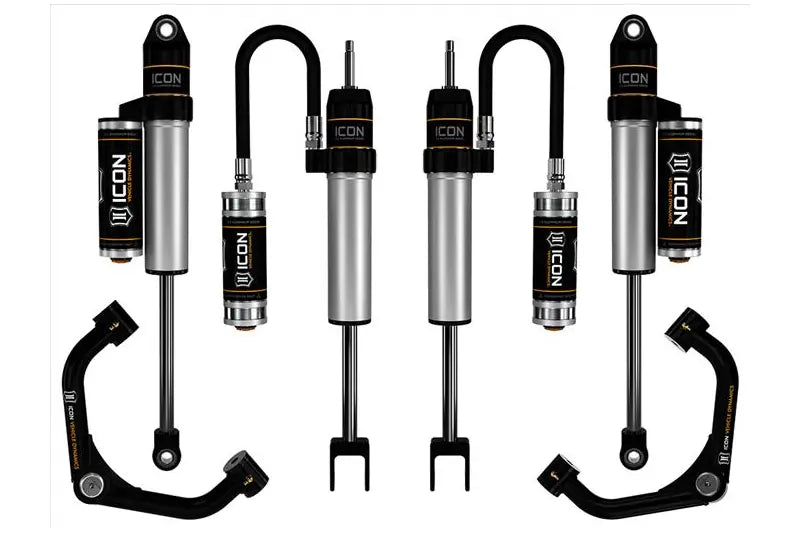

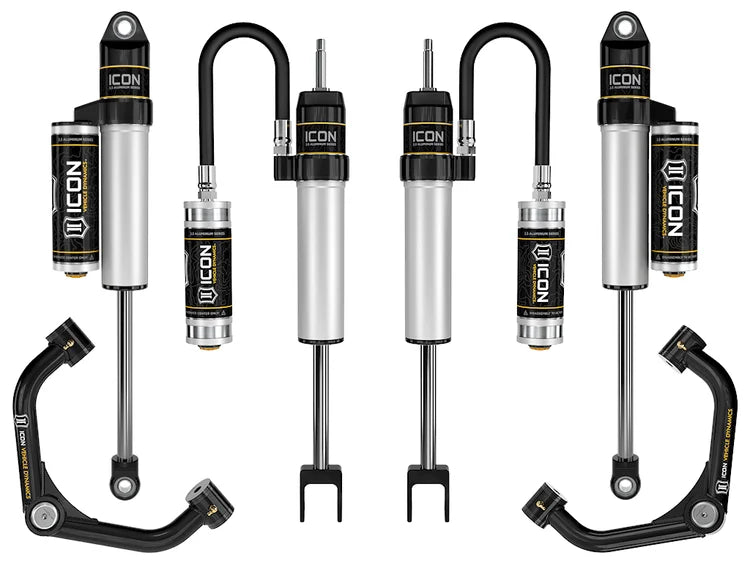

Parts Included:

• (1) 2020-2022 GM 6.6L Duramax 2500HD / 3500HD ICON V.S. 2.5 Aluminum Series 0-2" RR Front Shocks w/ Tubular UCAs (Part# 78734T)
• (1) 2001-2022 GM 6.6L Duramax 2500HD / 3500HD ICON V.S. 2.5 Aluminum Series 0-1" RR Rear Shocks (Part# 77701P)

Fitment: 2020, 2021, 2022 GM 6.6L Duramax 2500HD / 3500HD

Tech Notes:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" with 5.5" Backspace / 12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #65: NOT SOLD SEPARATELY, ONLY SOLD IN COMPLETE KIT FORM AS LISTED
• APPLICATION NOTE #113: 26.13" IS MAX MEASUREMENT FROM FENDER TO HUB, EXCEEDING THE MAXIMUM LIFT HEIGHT OF 26.13" CAN LEAD TO COMPONENT FAILURE NOT COVERED BY ICON WARRANTY
• The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.

Year Ranges	Make	Model	Series	Engine
2020-2022	GM	Silverado/Sierra	2500HD/3500HD	6.6L

Property	Values
Year Ranges	2020-2022
Make	GM
Model	Silverado/Sierra
Series	2500HD/3500HD
Engine	6.6L
